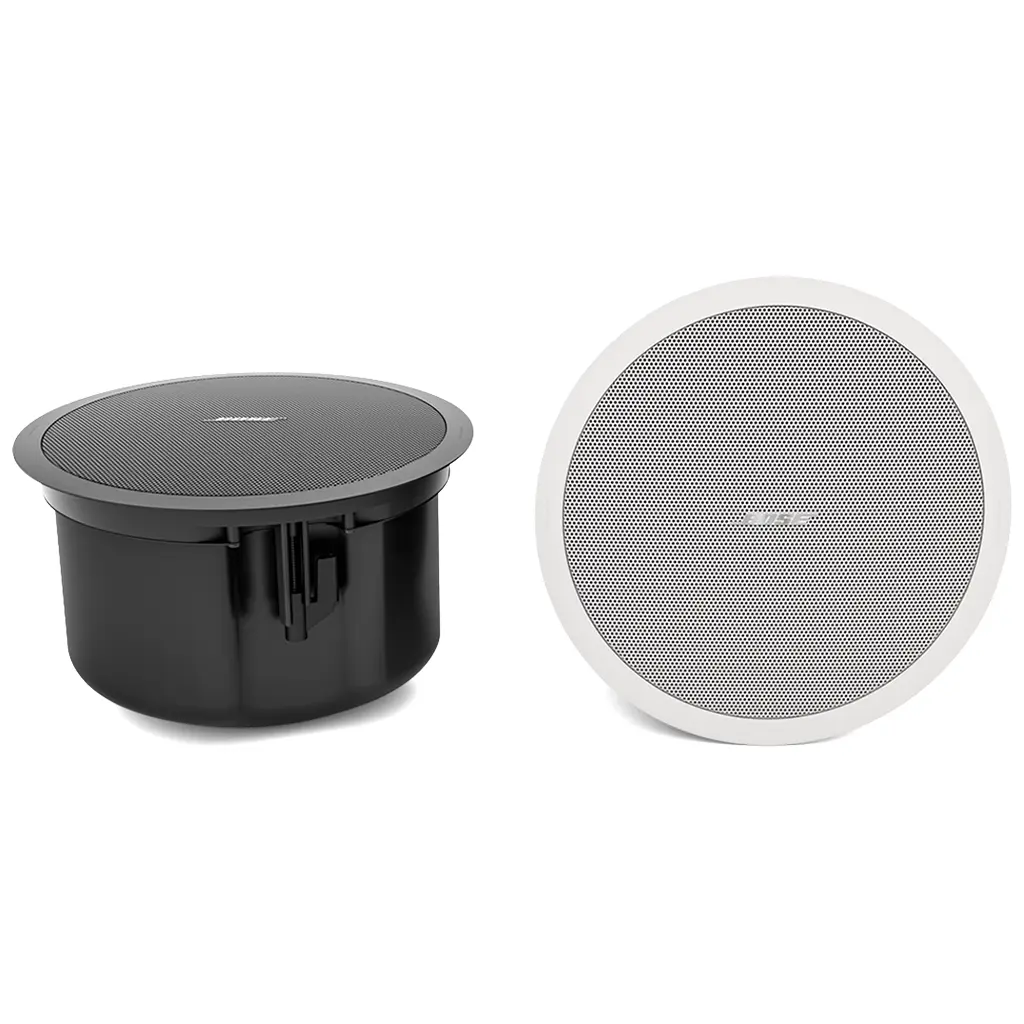

Ceiling Speaker, IP55, 40W@100V/8Ω | Bose FreeSpace FS4CE
රු206,900.00 (pair)
A high-performance in-ceiling loudspeaker featuring a 4.5″ full-range driver, designed for foreground and background audio in commercial indoor environments. It delivers wide, consistent coverage and supports both 70/100V and low-impedance installations.
Warranty: 2-year repair/replacement warranty for manufacturing defects.
Availability: Available on pre-order. Please contact us to check delivery time before ordering.
Key Features
- 4.5″ full-range driver delivers clear, powerful foreground and background audio.
- Compatible with 70V/100V distributed systems and 8Ω low-impedance setups.
- 145° conical coverage ensures wide, uniform dispersion.
- Integrated multi-tap transformer for flexible power settings.
- Low-profile, paintable grille blends into ceiling surfaces.
- Plenum-rated metal backcan with included tile bridge for safe ceiling installation.
- Ideal for commercial indoor spaces requiring premium audio quality.
Specifications
| Transducer | 4.5″ full-range driver |
| Power Handling | 40W continuous |
| Frequency Response | 80Hz to 16kHz (-3dB) |
| Nominal Impedance | 8Ω (transformer bypassed) |
| Sensitivity | 88dB (1W, 1m) |
| Transformer Taps | 100V: 40, 20, 10, 5 (watts) 70V: 40, 20, 10, 5, 2.5 (watts) |
| Coverage Pattern | 1kHz to 4kHz: 145° 1kHz to 10kHz: 115° |
| Enclosure | Engineered plastics front baffle with steel backcan |
| Ceiling Cutout | 249mm |
| Dimensions | 272mm (diameter) x 172mm (height) |
| Net Weight | 3.47kg (7.65lbs) |
Documentation
- Data Sheet (PDF)
- Installation Guide (PDF)
- Design Guide (PDF)
