HDMI Extender, 4K@60Hz, HDR | Atlona AT-HDR-EX-70C-KIT


HDBaseT transmitter, receiver and power supply for extending 4K HDR HDMI signals over network cable

Warranty: 2-years

Out of stock but can be pre odered. Please contact us to check current prices and lead times.

Brand: SKU: AT-HDR-EX-70C-KIT Category:

Key Features

  • Extends HDMI video and multi-channel audio as well as bidirectional IR and RS-232 control signals up to 230 feet (70 meters) @ 1080p and 130 feet (40 meters) @ 4K using CAT 6 or better cable.
  • HDMI data rates up to 18 Gbps support 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDR10 @ 60 Hz and Dolby® Vision™ @ 30 Hz.
  • HDCP 2.2 compliant.
  • Zero latency.
  • Receiver is powered by the transmitter via the Cat cable.


HDMI In Type A, 19-pin
HDBaseT Out RJ45 x 1
IR In/Out 4-pin Pheonix x 1
RS-232 3-pin Pheonix x 1
FW Update Micro-USB x 1
HDBaseT In RJ45 x 1
HDMI Out Type A, 19-pin female x 1
IR In/Out 5-pin Pheonix x 1
RS-232 3-pin Pheonix x 1
FW Update Micro-USB x 1
48V DC In 2-pin Pheonix x 1

Package Contents

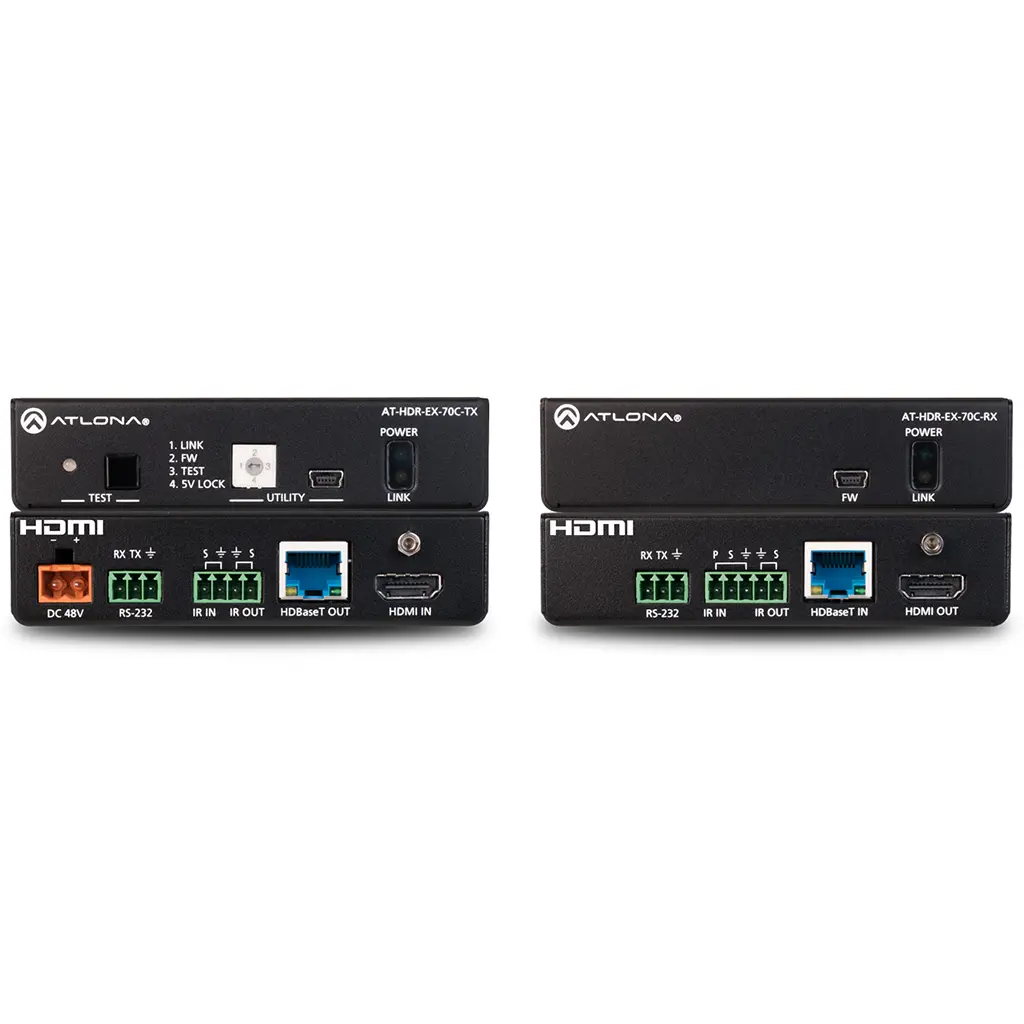

  • 1 x HDBaseT transmitter (AT-HDR-EX-70C-TX)
  • 1 x HDBaseT receiver (AT-HDR-EX-70C-RX)
  • 4 x Mounting brackets
  • 8 x Mounting screws
  • 1 x 48V DC power supply
  • 1 x IR emitter
  • 1 x 2-pin captive screw connector
  • 2 x 3-pin captive screw connector
  • 1 x 4-pin captive screw connector
  • 1 x 5-pin captive screw connector
  • 1 x Installation Guide
