Wall-Mount Speakers, IP66, 50W@100V, 60W@8Ω | AUDAC ATEO6M
රු174,900.00 (pair)
Premium 6″ indoor/outdoor surface-mount loudspeaker with 60W AES power handling, 8Ω and 70V/100V operation, IP66 weather protection, and CleverMount+ installation system.
Warranty: 1-year carry-in repair warranty for manufacturing defects.
Product Overview

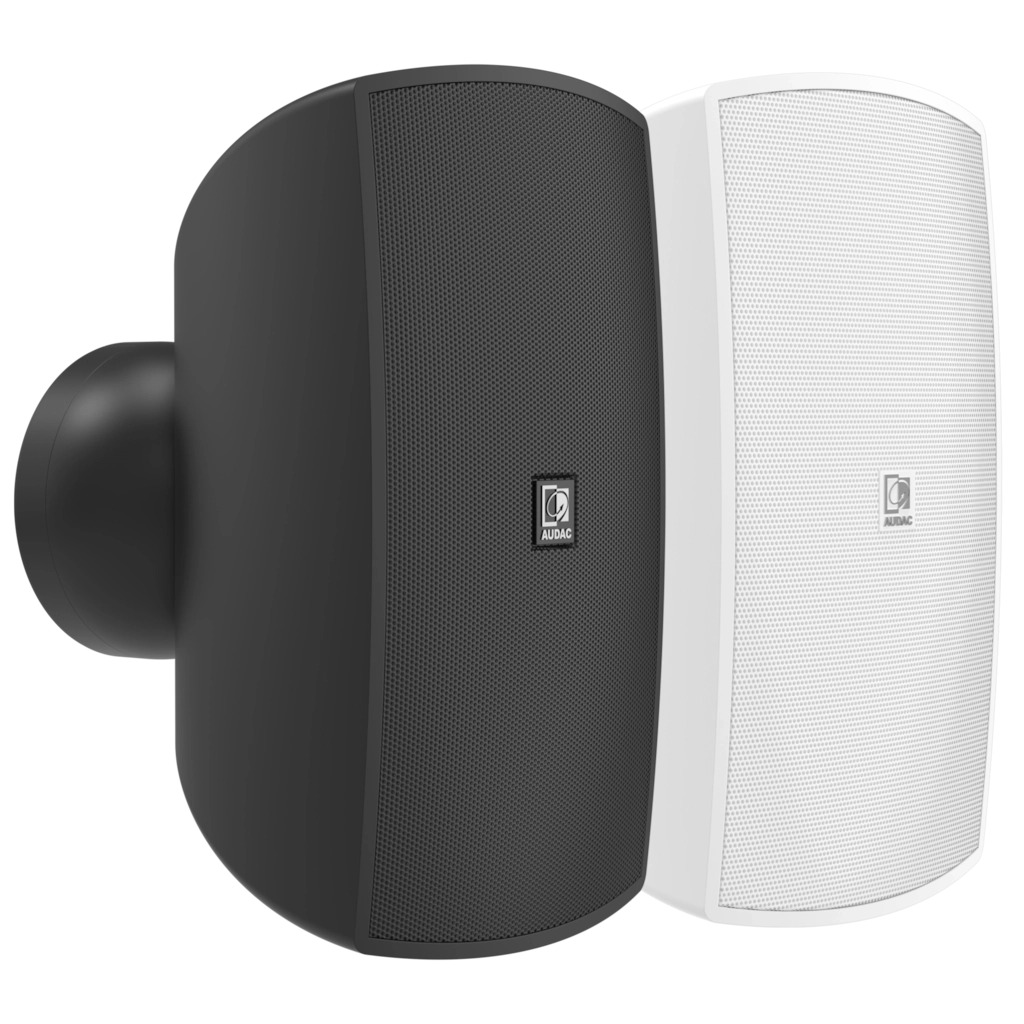

The AUDAC ATEO6M is a premium 6″ surface-mount loudspeaker designed for fixed indoor and outdoor installations where high-quality music reproduction, clear speech and discreet architectural integration are required. Typical applications include hotels, restaurants, retail spaces, corporate environments, clubs and residential installations.
A 6″ mid/low-frequency driver and 1″ dome tweeter provide a wide, smooth frequency response, with 120° horizontal and vertical coverage for even sound distribution. The loudspeaker handles 60W continuous AES power, 120W programme and 240W peak, and can operate directly from an 8Ω amplifier output or from 70V/100V distributed loudspeaker systems using its built-in transformer.
AUDAC’s CleverMount+™ mounting system integrates the loudspeaker connection and wall bracket into a clean installation with no visible wiring at the rear. Screwless WAGO spring-cage terminals accept cable up to 4.0mm², while an externally accessible power-tap selector simplifies commissioning and later system adjustments.
For demanding outdoor applications, the ATEO6M has an IP66-rated weather-resistant construction with an aluminium grille, hydrophobic cloth, UV-resistant ABS enclosure and marine-grade build quality. AUDAC also specifies a 720-hour salt-spray test.
Key Features
- 6″ indoor/outdoor surface-mount loudspeaker
- 1″ dome tweeter and 6″ mid/low-frequency driver
- 60W continuous AES, 120W programme and 240W peak power handling
- 8Ω low-impedance operation
- Built-in 70V/100V line transformer with selectable power taps
- 89dB sensitivity (1W/1m)
- 106dB maximum SPL at 8Ω
- 65Hz-20kHz frequency response (±3dB)
- 120° horizontal x 120° vertical coverage
- IP66 weather-resistant construction
- UV-resistant ABS enclosure
- Aluminium grille with hydrophobic cloth
- 720-hour salt-spray tested marine-grade construction
- CleverMount+™ weatherproof mounting system
- Screwless WAGO connections supporting cable up to 4.0mm²
- External power-tap selector
- Available in black or white
Specifications
Audio |
|
| Speaker Type | 2-way surface-mount loudspeaker |
| Low / Mid Frequency Driver | 6″ woofer |
| High Frequency Driver | 1″ dome tweeter |
| Continuous Power (AES) | 60W |
| Programme Power | 120W |
| Peak Power | 240W |
| Nominal Impedance | 8Ω |
| Sensitivity | 89dB (1W/1m) |
| Maximum SPL | 106dB @ 8Ω; 105dB @ 100V |
| Frequency Response | 65Hz-20kHz (±3dB) |
| Frequency Range | 55Hz-20kHz (-10dB) |
| Coverage | 120° horizontal x 120° vertical |
70V / 100V Transformer Taps |
|
| Tap 1 (100Ω) | 100V: not used / 70V: 50W |
| Tap 2 (200Ω) | 100V: 50W / 70V: 25W |
| Tap 3 (400Ω) | 100V: 25W / 70V: 12.5W |
| Tap 4 (800Ω) | 100V: 12.5W / 70V: 6.25W |
Installation & Connectivity |
|
| Connections | 2 x WAGO terminal-block connections |
| Maximum Cable Section | 4.0mm² |
| Mounting System | Weatherproof CleverMount+™ |
| Inclination | Left 30°, right 30°, bottom 30°, top 5° |
Physical |
|
| Construction | ABS enclosure |
| Front | Aluminium grille with hydrophobic cloth |
| Ingress Protection | IP66 |
| Operating Temperature | -20°C to 60°C |
| Dimensions (W x H x D) | 7.60 x 13.68 x 8.47″ |
| Weight | 8.42 lb |
| Colours | Black (RAL9005) or white (RAL9003) |
Available Models
- ATEO6M/B – Black, 8Ω and 70V/100V
- ATEO6M/W – White, 8Ω and 70V/100V
Package Contents
- 1x AUDAC ATEO6M Loudspeaker
- 1x CleverMount+™ wall-mount system
- 1x Allen-key wrench
Documentation
Additional information
| Colour | Black, White |
|---|
