9-Port Unmanaged Network Switch with 8 PoE Ports | Dahua DH-PFS3009-8ET-96
රු34,990.00
9-port unmanaged desktop switch with 8x 10/100 Mbps PoE ports (96W total power budget, 60W Hi-PoE on port 1) and 1x 10/100 Mbps uplink port. Supports 250m long-distance PoE.
Warranty: 1-year carry-in repair/replacement warranty for manufacturing defects.
Availability: This product is sourced on order and is not normally held in stock. Please contact us to check delivery time before ordering.
Product Overview

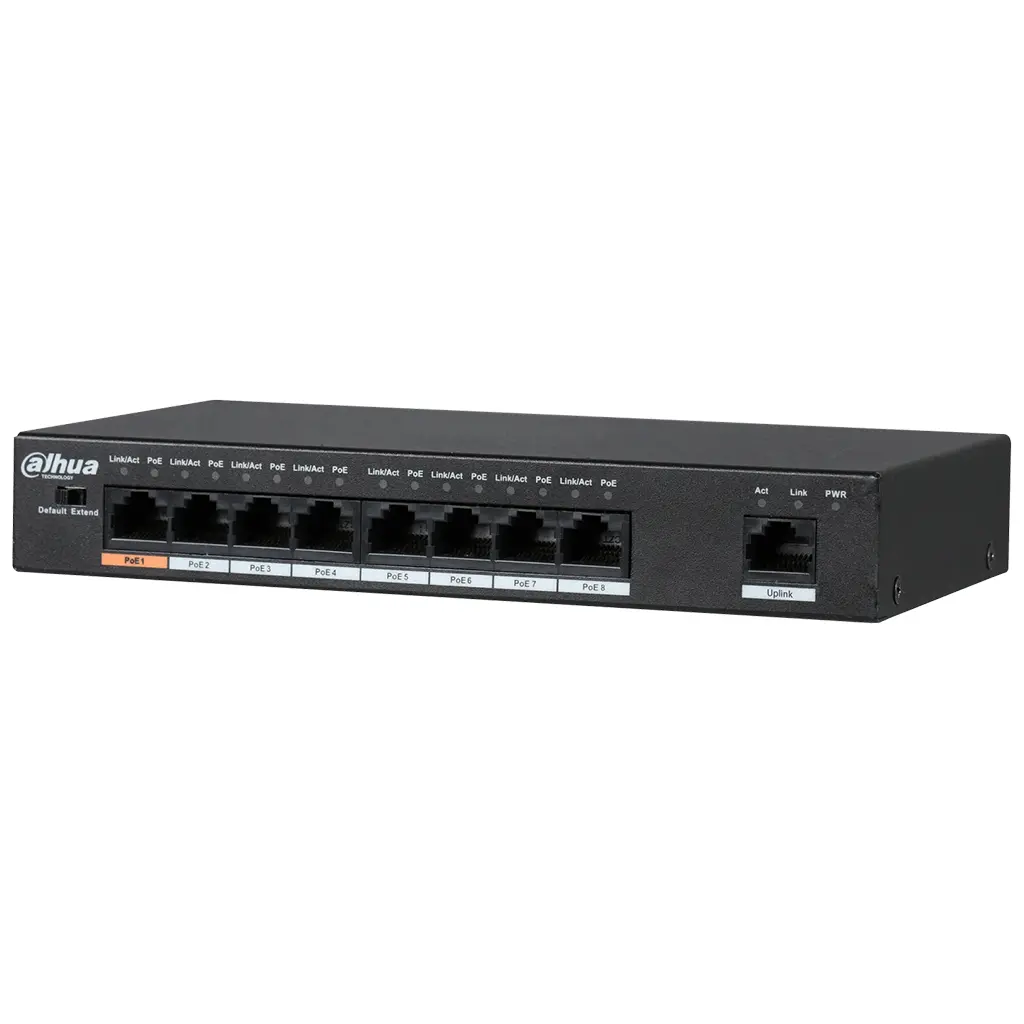

The Dahua DH-PFS3009-8ET-96 is an unmanaged Layer 2 desktop switch built for small-scale PoE camera and IP device deployments. It provides 8 RJ-45 10/100 Mbps PoE ports plus a dedicated 10/100 Mbps uplink port, with a total PoE power budget of 96W. Port 1 (the “red port”) supports IEEE802.3af, IEEE802.3at, and Hi-PoE standards at up to 60W, making it suitable for powering higher-draw devices such as PTZ cameras.
The switch includes Dahua’s Intelligent PoE power management, which monitors consumption in real time and prioritizes power delivery to keep critical ports online, along with a PoE Watchdog feature that automatically detects a failed port connection and restarts it, reducing the need for manual maintenance. A switchable long-distance transmission mode extends PoE reach up to 250 meters (at a reduced 10 Mbps bandwidth) for installations where cameras sit farther from the switch than standard Ethernet limits allow.
Key Features
- 8x 10/100 Mbps PoE ports + 1x 10/100 Mbps uplink port
- 96W total PoE power budget; port 1 supports up to 60W (Hi-PoE)
- Intelligent PoE power consumption management and monitoring
- PoE Watchdog: automatic detection and restart of unresponsive PoE ports
- Long-distance PoE transmission up to 250 m (switchable Extend Mode)
- 8-pin PoE power supply (signal + spare pairs) for improved compatibility and reduced cable loss
- Unmanaged, plug-and-play Layer 2 switch — no configuration required
- Desktop or wall-mount installation
Specifications
| Model | DH-PFS3009-8ET-96 |
| Ethernet Ports | 8x RJ-45 10/100 Mbps (PoE) |
| Uplink Port | 1x RJ-45 10/100 Mbps |
| PoE Power Budget | Port 1 ≤ 60W (Hi-PoE); Ports 2-8 ≤ 30W each; Total ≤ 96W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| PoE Pin Assignment | 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V-) |
| Long-Distance PoE | Up to 250 m (Extend Mode, reduced to 10 Mbps) |
| PoE Watchdog | Supported |
| Layer | Layer 2, unmanaged |
| Switching Capacity | 1.8 Gbps |
| Packet Forwarding Rate | 1.34 Mpps |
| Packet Buffer Size | 768 kbit |
| MAC Table Size | 2K |
| Communication Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Power Supply | External adapter, 48-57 VDC, 2-1.68 A |
| Power Consumption (idling) | 1.5 W |
| Power Consumption (full load) | 115 W |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 5% – 95% RH |
| Surge Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kV; Differential mode: 2 kV |
| Casing Material | Iron |
| Installation | Desktop mount, wall mount |
| Product Dimensions (L x W x H) | 190 x 100 x 30 mm (7.48″ x 3.94″ x 1.18″) |
| Packaging Dimensions (L x W x H) | 267 x 239 x 77 mm (10.51″ x 9.41″ x 3.03″) |
| Net Weight | 0.49 kg (1.08 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Certifications | CE, FCC |
Package Contents
- DH-PFS3009-8ET-96 switch x 1
- External power adapter x 1
- Mounting hardware
