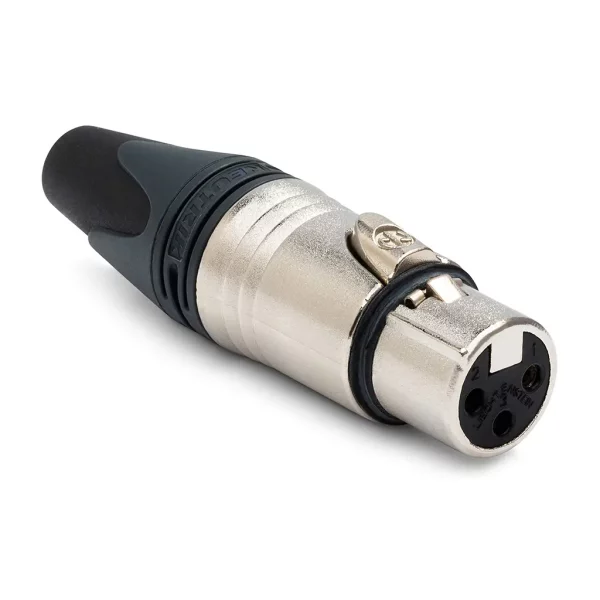

Audio Connector, XLR Plug, 3-Pin Female | Neutrik NC3FXX
රු1,989.00
3 pole female cable connector with Nickel housing and silver-plated contacts
Availability: Available on pre-order. Please contact us to check delivery time before ordering.
Key Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design – valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Specifications
Electrical | |
Capacitance between contacts | ≤ 4 pF |
Contact resistance | ≤ 3 mΩ |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GΩ (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical | |
Cable Outer Diameter | 3.5 – 8.0 mm |
Insertion force | ≤ 20 N |
Withdrawal force | ≤ 20 N |
Lifetime | > 1000 mating cycles |
Wire size | max. 2.5 mm² (14 AWG) |
Wiring | Solder contacts |
Locking device | Latch lock |
Material | |
Boot | Polyurethane |
Contact plating | 2 µm Ag |
Contacts | Brass (CuZn39Pb3) |
Insert | Polyamide (PA66) |
Locking element | Zinc diecast (ZnAl4Cu1) |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Nickel |
Strain relief | Polyacetal (POM) |
Environmental | |
Flammability | UL 94 V-0 |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
Documentation
- Assembly Instructions (PDF)
