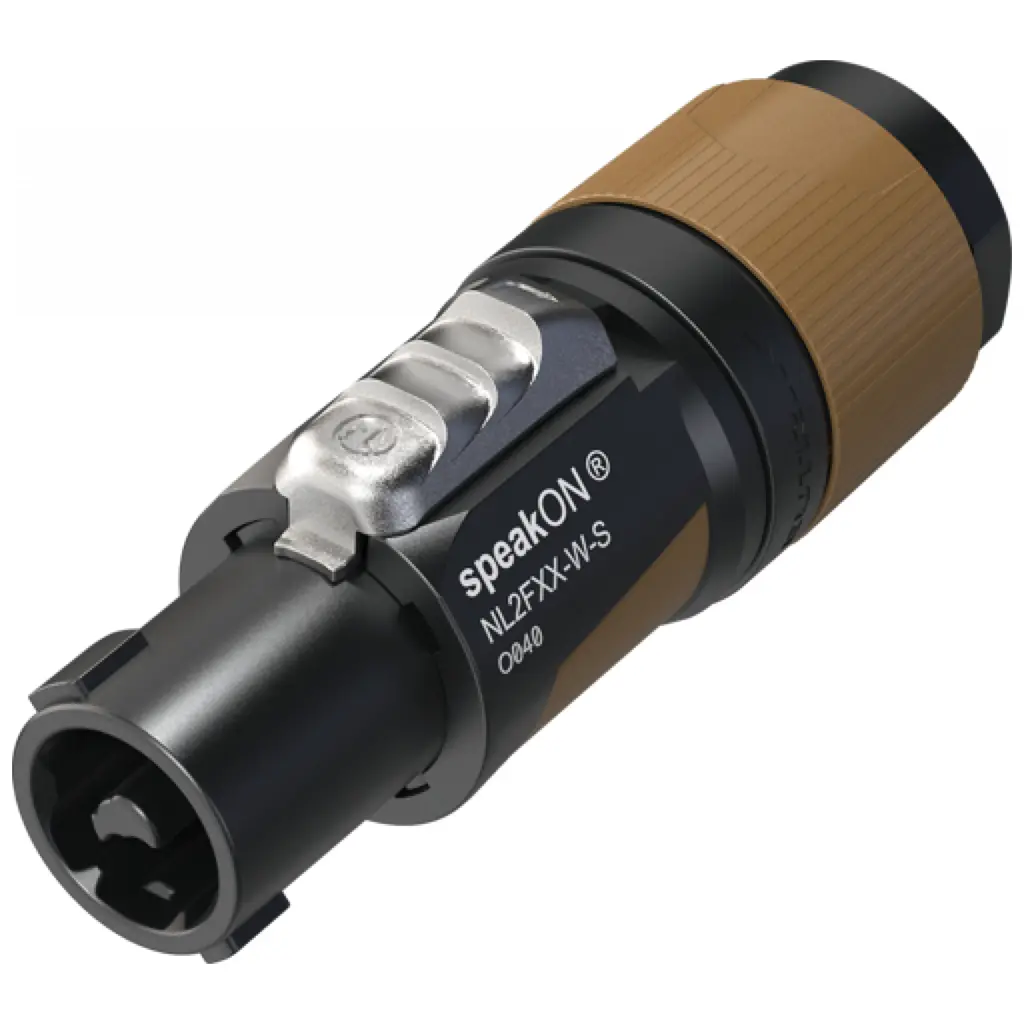

Speaker Connector, 2-Pole speakON | Neutrik NL2FXX-W-S

Speaker Connector, 2-Pole speakON | Neutrik NL2FXX-W-S

රු2,139.00

2-pole speakON cable connector for building professional loudspeaker cables. 37A rms rated, twist-lock system, screw terminals, cable diameter 6-12mm.

Availability: This product is sourced on order and is not normally held in stock. Please contact us to request a quote or to check delivery time before ordering.

SKU: NL2FXX-W-S Category: Brand: Made In: Liechtenstein

Product Overview

The Neutrik NL2FXX-W-S is a 2-pole speakON cable connector, part of Neutrik’s industry-standard range of loudspeaker connectors used for amplifier-to-speaker connections in professional audio. It’s designed for building custom speaker cables, and is engineered specifically to handle the high current, inductive load environment that loudspeaker cabling is exposed to.

The connector uses Neutrik’s proven twist-lock system with a unique metal locking bushing, ensuring the connector makes contact only once it’s fully locked in place, and won’t work loose during use. A screw-type terminal assembly with stranded wire protection makes for a secure, reliable termination when building a cable by hand, and a chuck-type strain relief accommodates cable diameters from 6 to 12mm, with a two-component bushing design that improves kink protection at the cable entry point.

Housing materials are glass-reinforced and rated V-0 for flammability, making the connector fireproof, robust, and dependable for demanding touring, installation, or rental use. The NL2FXX-W-S mates with both 2-pole and 4-pole speakON chassis connectors (using the +1/-1 contacts on a 4-pole receptacle), giving some flexibility when matching cables to existing equipment.

Key Features

  • 2-pole speakON cable connector, female
  • Mates with both 2-pole and 4-pole speakON chassis connectors
  • 37A rms continuous current rating
  • Twist-lock system with unique Neutrik locking bushing
  • Screw-type terminals with stranded wire protection
  • Chuck-type strain relief for 6-12mm cable diameters
  • Glass-reinforced, V-0 fireproof housing material
  • IEC 61984 certified

Specifications

Electrical
Poles 2
Current Rating 37 A rms continuous
Contact Resistance ≤ 2 mΩ
Dielectric Strength 2.8 kVAC
Max Wire Size 4 mm² (12 AWG)

Mechanical
Termination Type Screw terminal, chuck-type strain relief
Locking System Twist-lock with metal locking bushing
Cable Diameter Range 6-12 mm (0.23″-0.47″)
Mates With 2-pole and 4-pole speakON chassis connectors (contacts +1/-1)

Materials & Ratings
Contact Material Copper
Housing Material Plastic (glass-reinforced polyamide/polypropylene), Zinc
Flammability Rating UL94 V-0
Housing Color Black, brown bushing
IP Rating IP20 (indoor use only)
Standards IEC 61984 certified (component of equipment per IEC 62368-1)
Operating Temperature -30°C to +80°C (-22°F to 176°F)

Physical
Length 82.5 mm (3.25″)
Height 30.3 mm (1.19″)
Width / Diameter 26.5 mm (1.04″)

Package Contents

  • 1x Neutrik NL2FXX-W-S speakON Cable Connector

Documentation
