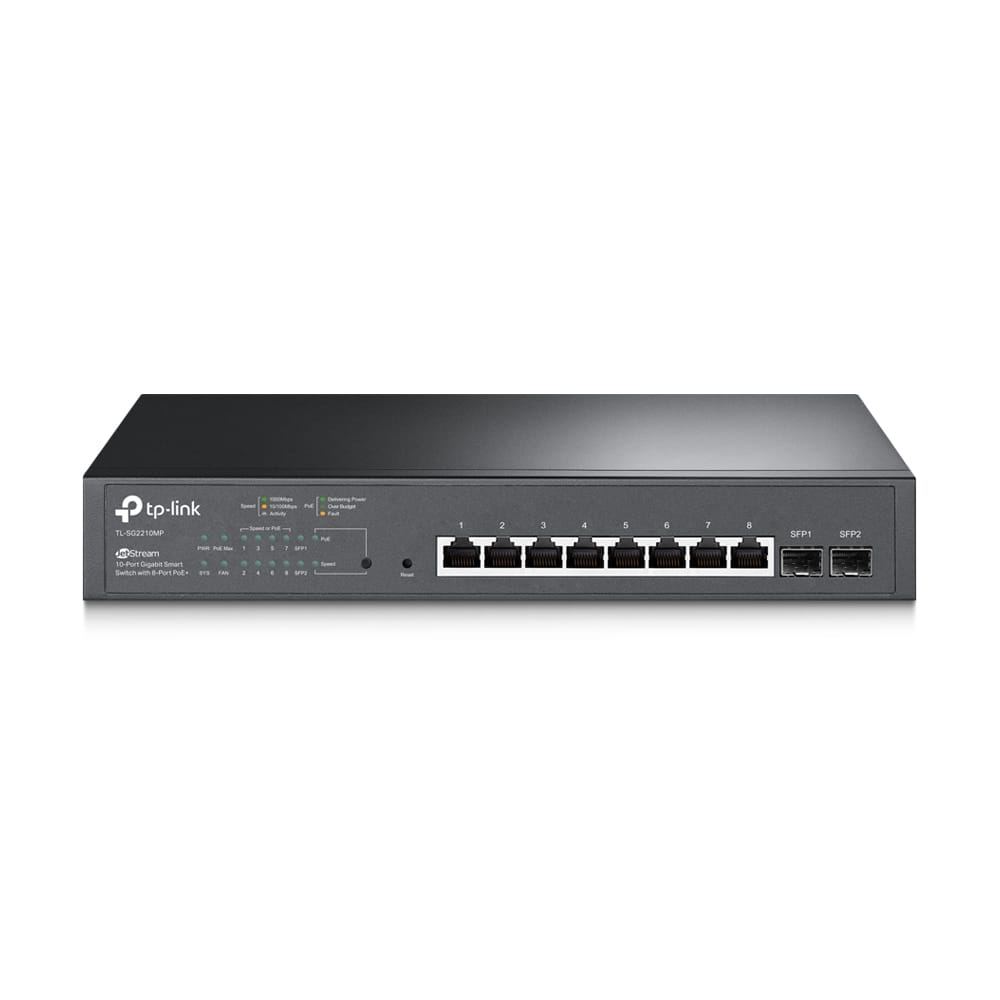

10-Port Gigabit Smart Switch with 8-Port PoE+ | TP-Link TL-SG2210MP

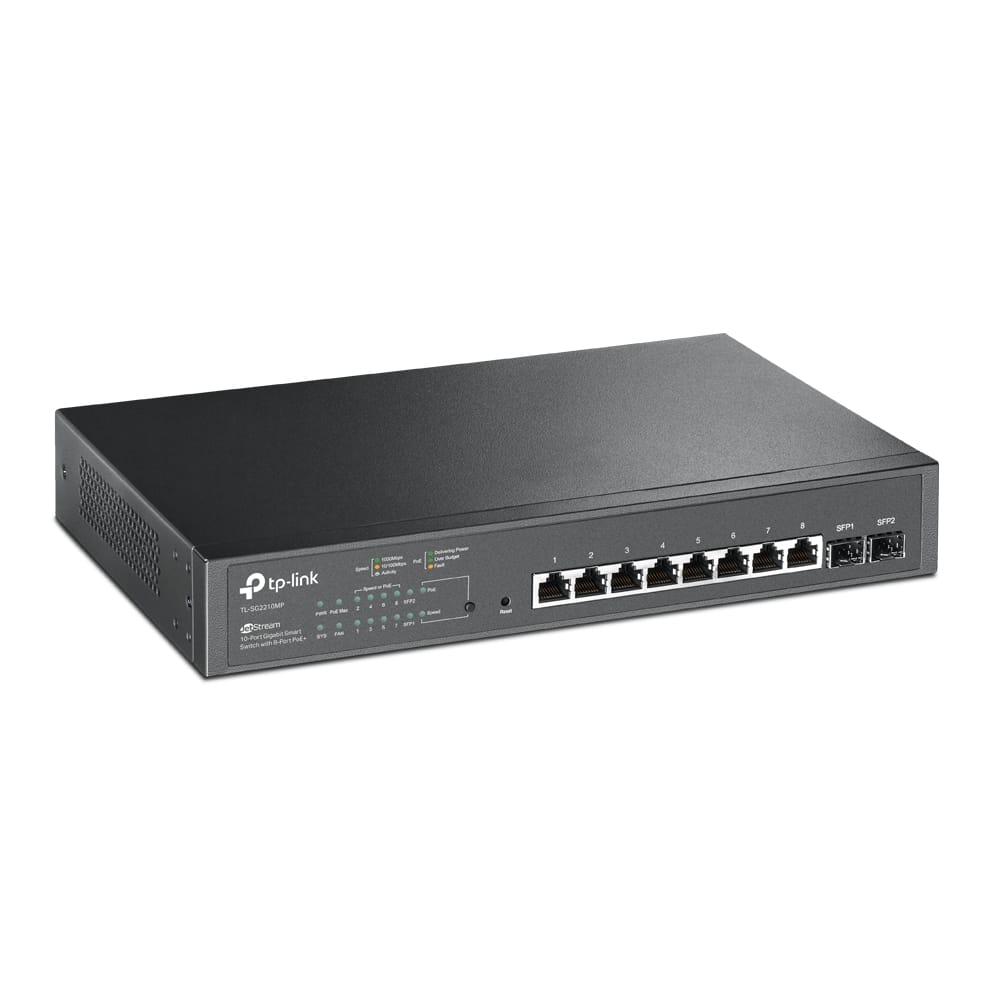

10-Port Gigabit Smart Switch with 8-Port PoE+ | TP-Link TL-SG2210MP - Image 2

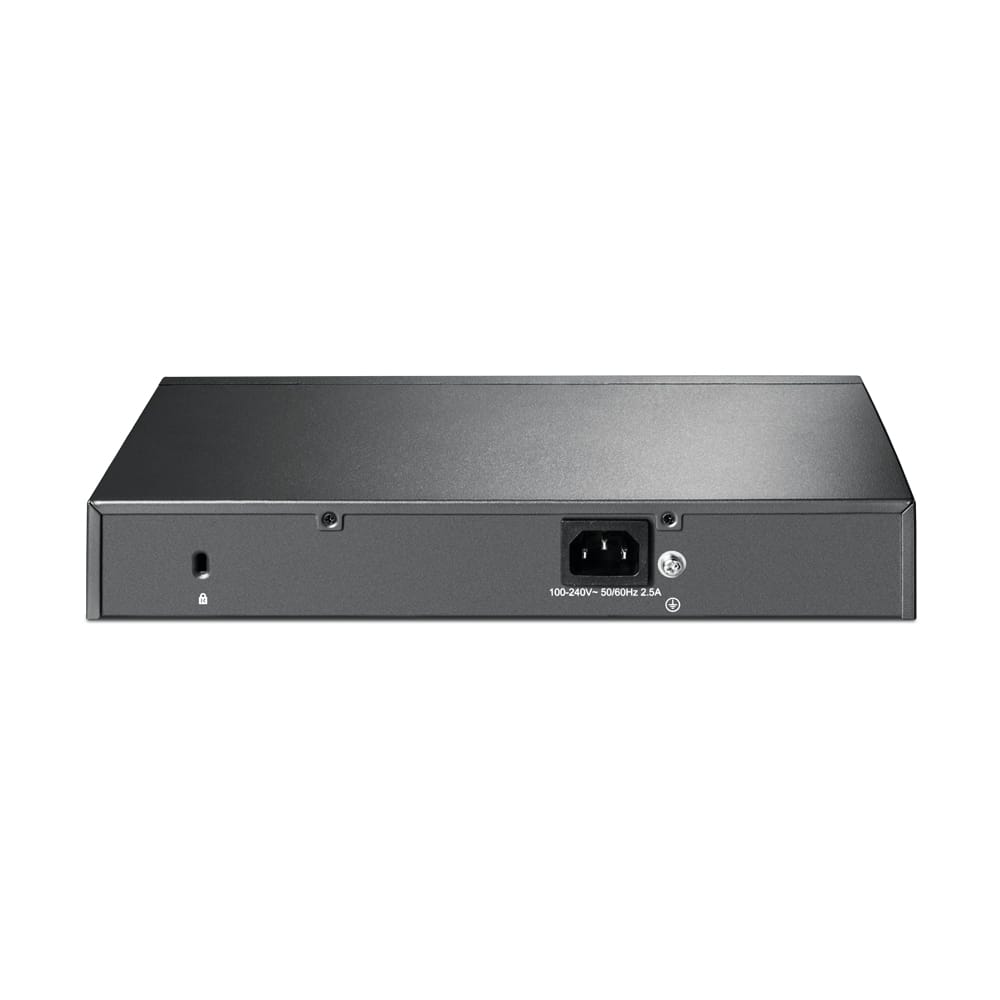

10-Port Gigabit Smart Switch with 8-Port PoE+ | TP-Link TL-SG2210MP - Image 3

10-Port Gigabit Smart Switch with 8-Port PoE+ | TP-Link TL-SG2210MP

රු68,990.00

10-port Gigabit smart managed switch with 8x Gigabit PoE+ ports (150W total budget) and 2x Gigabit SFP slots, integrated into TP-Link’s Omada SDN platform.

Warranty: 1-year carry-in repair/replacement warranty for manufacturing defects (excluding power adaptor).

Availability: This product is sourced on order and is not normally held in stock. Please contact us to check delivery time before ordering.

SKU: TL-SG2210MP Category: Brand: Made In: China

Product Overview

The TP-Link TL-SG2210MP is a Gigabit smart managed switch built for small and medium-sized business networks that need PoE-powered access points, IP cameras, or VoIP phones. It provides 8 Gigabit RJ45 ports with 802.3at/af PoE+ output (150W total power budget) plus 2 Gigabit SFP slots for fiber uplinks, backed by a 20 Gbps switching capacity and 14.9 Mpps forwarding rate.

As part of TP-Link’s Omada SDN ecosystem, the switch can be centrally managed alongside Omada access points and gateways through a cloud-based or on-premises controller, with Zero-Touch Provisioning for streamlined deployment. Layer 2 and L2+ features — including VLANs, QoS, ACLs, IGMP snooping, and link aggregation — give administrators the tools to segment and prioritize voice, video, and data traffic across the network. Robust security options such as IP-MAC-Port binding, DHCP snooping, ARP inspection, and 802.1X authentication help protect the network from unauthorized access.

Key Features

  • 8x Gigabit RJ45 PoE+ ports with 150W total power budget
  • 2x Gigabit SFP slots for fiber uplink connections
  • 20 Gbps switching capacity, 14.9 Mpps forwarding rate
  • Centralized management and cloud access via Omada SDN Controller
  • Zero-Touch Provisioning for simplified deployment
  • L2/L3/L4 QoS and IGMP snooping for voice/video traffic optimization
  • Advanced security: IP-MAC-Port Binding, ACL, Port Security, DHCP Snooping, 802.1X, RADIUS authentication
  • Desktop or 13″/19″ 1U rack-mountable design

Specifications

Hardware Features
Standards and Protocols IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.3af, 802.3at, 802.3az, 802.1d, 802.1s, 802.1w, 802.1q, 802.1x, 802.1p
Interfaces 8x 10/100/1000 Mbps RJ45 ports (all PoE+, Auto-Negotiation/Auto MDI/MDIX); 2x 100/1000 Mbps SFP slots
Network Media 10BASE-T: Cat3/4/5 UTP/STP (100m max); 100BASE-TX/1000BASE-T: Cat5/5e+ UTP/STP (100m max); 100BASE-FX/1000BASE-X: MMF, SMF
Fan Quantity 1
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60Hz
PoE Ports (RJ45) 8 ports, 802.3at/af compliant, 150W total power budget
Dimensions (W x D x H) 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)
Mounting Desktop, 13″ or 19″ 1U rack mountable
Max. Power Consumption 12.2W (no PD connected); 173.9W (150W PD connected), at 110V/60Hz
Max. Heat Dissipation 41.6 BTU/h (no PD connected); 539.4 BTU/h (150W PD connected)

Performance
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.9 Mpps
MAC Address Table 8K

Software Features
Quality of Service 802.1p CoS/DSCP priority; 8 priority queues; SP/WRR scheduling; bandwidth control; storm control
L2 and L2+ Features DHCP Relay/L2 Relay; Static and 802.3ad LACP link aggregation (up to 8 groups, 8 ports/group); STP/RSTP/MSTP; Loopback Detection; 802.3x Flow Control; Port/CPU Mirroring; DLDP; 802.1ab LLDP/LLDP-MED
L2 Multicast IGMP v1/v2/v3 Snooping; MLD v1/v2 Snooping; Multicast VLAN Registration (MVR); Multicast Filtering; up to 511 shared multicast groups
VLAN Up to 4K VLAN groups; 802.1Q tag VLAN; MAC VLAN; Protocol VLAN; GVRP; Voice VLAN
Access Control List Up to 230 entries; MAC/IP/IPv6/Combined ACL; time-based ACL; mirror/redirect/rate-limit/QoS remark actions
Security AAA; 802.1X (port and MAC-based); IP/IPv6-MAC Binding; DHCP/DHCPv6 Snooping; ARP/ND Inspection; IP/IPv6 Source Guard; DoS Defend; Port Security (up to 64 MAC/port); Storm Control; Port Isolation; HTTPS/SSH management
IPv6 IPv6 static routing and ACL; dual IPv4/IPv6 stack; MLD Snooping; ND; PMTU discovery; ICMPv6; DHCPv6 client; IPv6 SNMP/SSH/SSL
MIBs MIB II (RFC1213); Bridge MIB (RFC1493); Q-Bridge MIB (RFC2674); RADIUS Accounting/Auth Client MIB; RMON MIB (RFC1757)

Management Features
Omada App Supported via Omada Cloud-Based Controller, OC300, OC200, or Omada Software Controller
Centralized Management Omada Cloud-Based Controller, OC300, OC200, or Omada Software Controller
Zero-Touch Provisioning Supported via Omada Cloud-Based Controller
Management Interfaces Web GUI; CLI via Telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON; DHCP/BOOTP Client; Dual Image/Config; Cable Diagnostics; EEE; SNTP; System Log

Other
Certification CE, FCC, RoHS
Operating Temperature 0-50°C (32-122°F)
Storage Temperature -40-70°C (-40-158°F)
Operating Humidity 10-90% RH, non-condensing
Storage Humidity 5-90% RH, non-condensing

Package Contents

  • TL-SG2210MP switch
  • Power cord
  • Installation guide
  • Rackmount kit
  • Rubber feet
