Active PA Speaker, 700W | Yamaha DBR10
රු181,900.00 (each)
10″ bi-amplified powered PA speaker with 700W Class-D amplification, onboard 2-channel mixer, switchable HPF for subwoofer use, and Main/Monitor D-Contour switching.
Warranty: 1-year carry-in repair warranty for manufacturing defects.
Availability: This product is sourced on order and is not normally held in stock. Please contact us to request a quote or to check delivery time before ordering.
Product Overview

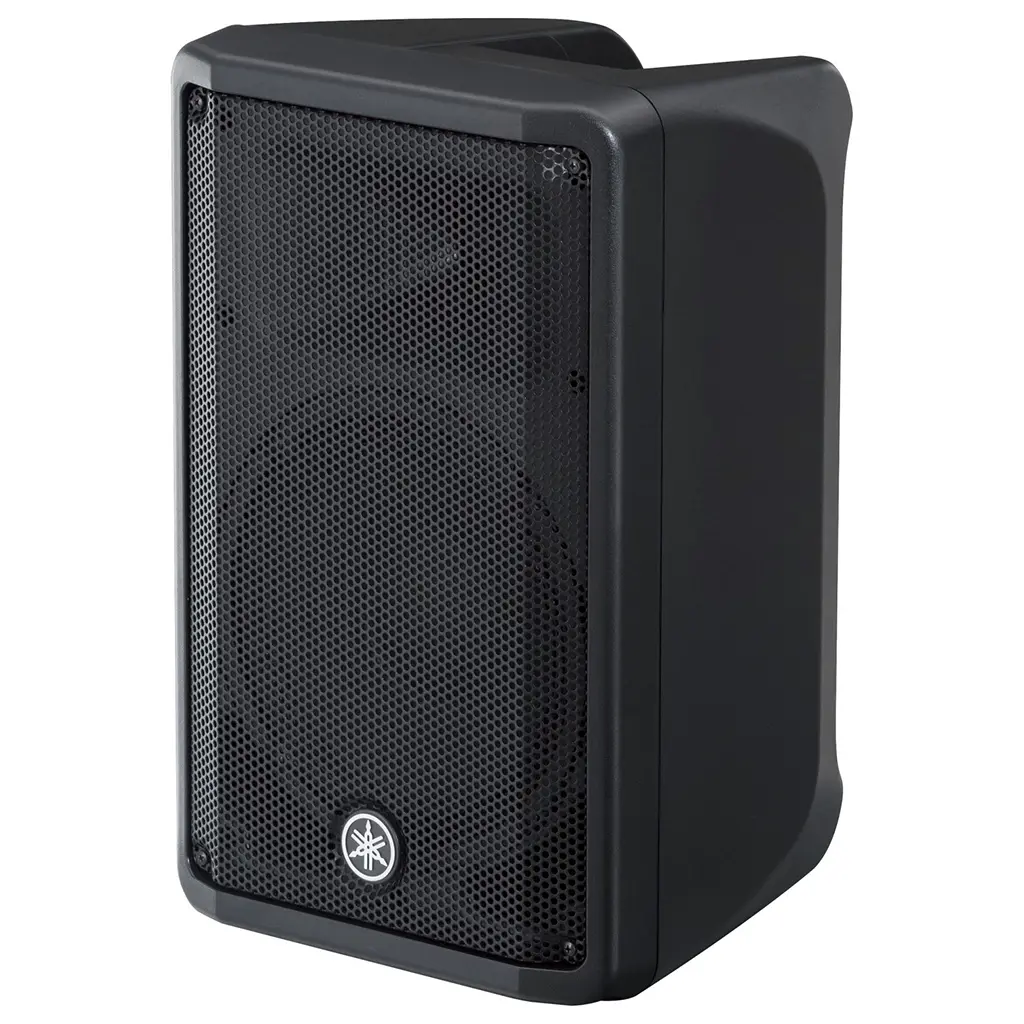

The Yamaha DBR10 is a compact, bi-amplified powered loudspeaker built for musicians, DJs, and small event PA setups that need a portable, high-output speaker without a separate mixer or amplifier. It’s the smallest model in Yamaha’s DBR series, sharing DSP, amplifier, and speaker technology developed for Yamaha’s professional DSR and DXR series lines.
A two-way, bass-reflex design pairs a 10″ cone woofer (with a 2″ voice coil) with a 1″ horn-loaded compression driver, each powered by its own dedicated amplifier channel within a 700W Class-D amplifier system. Yamaha’s FIR-X tuning applies linear-phase FIR crossover filtering for a smooth, high-resolution frequency response, while D-Contour multi-band compression protects the drivers and lets the same speaker be optimized for either main PA use or floor monitor use with a single switch.

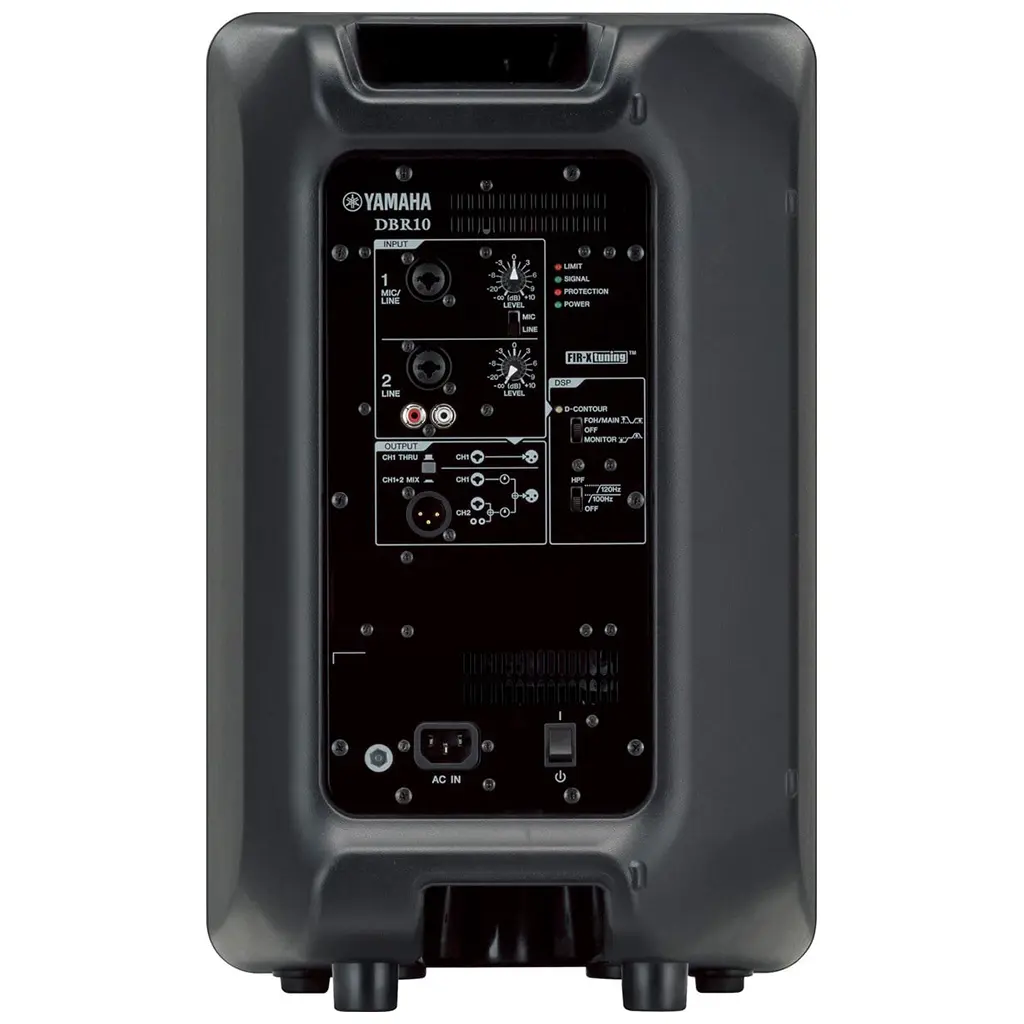

An onboard 2-channel mixer allows the DBR10 to run without any external mixing desk: Channel 1 accepts a combo XLR/¼” input, while Channel 2 adds a second combo XLR/¼” input alongside a stereo unbalanced RCA input for connecting a CD player or media device. The two channels can be blended together or passed through independently, and a switchable high-pass filter makes it straightforward to add a companion subwoofer to the system without extra outboard gear.

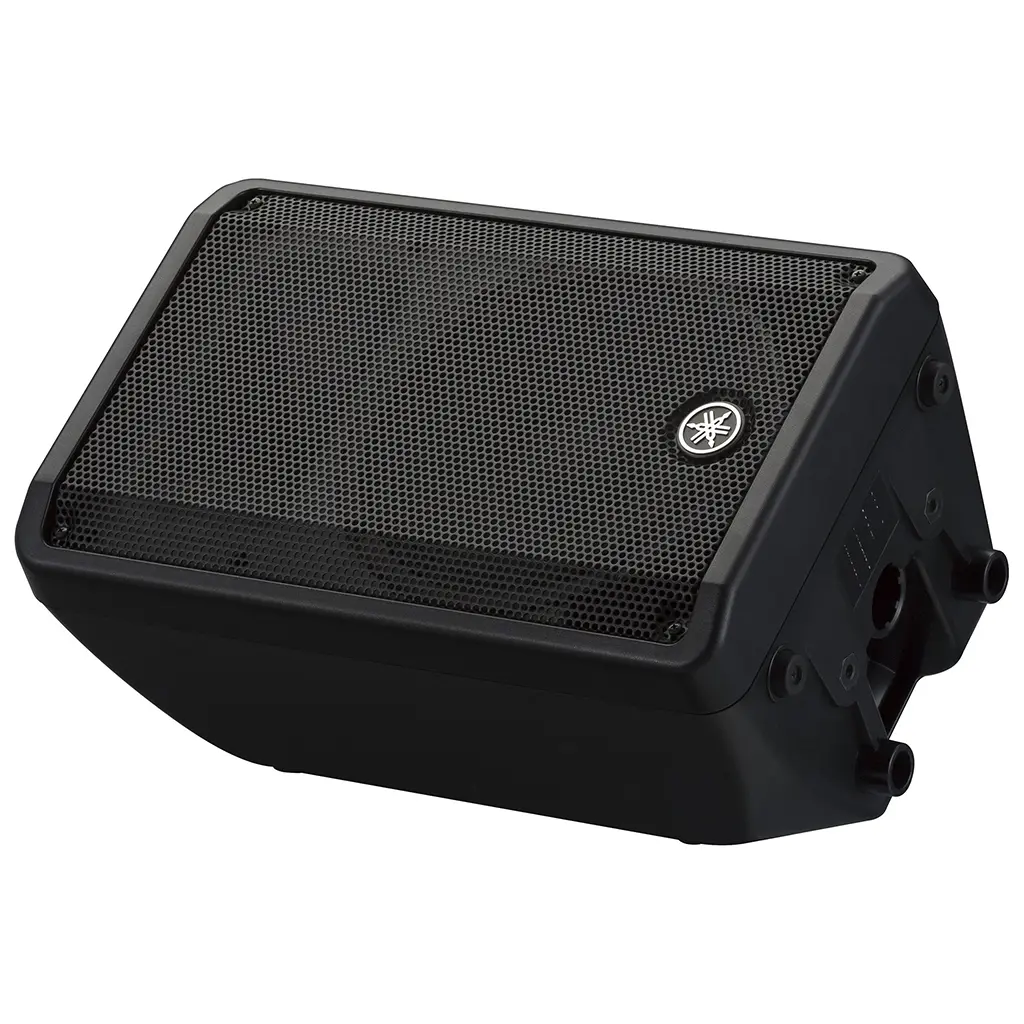

The cabinet’s optimized 50° wedge angle allows the DBR10 to double as a floor monitor when laid on its side, in addition to standard upright PA use. A durable, lightweight molded cabinet with a protective steel grille and ergonomic carry handle keeps the speaker easy to transport between gigs, and M8 rigging points allow the DBR10 to be flown using optional Yamaha speaker brackets or standard eye-bolts.
Key Features
- Bi-amplified 700W Class-D amplifier system (dedicated amp per driver)
- 10″ cone woofer (2″ voice coil) + 1″ horn-loaded compression driver
- Maximum SPL of 129dB
- FIR-X tuning: linear-phase FIR crossover filtering
- D-Contour: multi-band compression with Main/Monitor mode switching
- Onboard 2-channel mixer with CH1+2 Mix or CH1 Thru selection
- Switchable high-pass filter for use with a companion subwoofer
- 90° x 60° horn coverage angle
- 50° wedge-angle cabinet for floor monitor use
- M8 rigging points for flown/rigged installation (brackets and eye-bolts sold separately)
- 4-speed cooling fan
Specifications
Audio |
|
| Type | 2-way, bass-reflex, bi-amplified powered loudspeaker |
| Low Frequency Driver | 10″ cone, 2″ voice coil |
| High Frequency Driver | 1″ compression driver, 1″ throat, horn-loaded |
| Amplifier | Class-D, 1000W dynamic / 465W continuous (system total) |
| Rated Output Power | 700W (Yamaha-rated) |
| Maximum SPL | 129 dB |
| Crossover Frequency | 2.1 kHz |
| Horn Coverage Angle | 90° horizontal x 60° vertical |
| Signal Processing | FIR-X tuning, D-Contour multi-band compression |
Mixer & Connectivity |
|
| Input 1 | Combo XLR / ¼” (mic/line) |
| Input 2 | Combo XLR / ¼” + stereo unbalanced RCA |
| Mixer Modes | CH1+CH2 Mix or CH1 Thru |
| Output | XLR3-32 (CH1 parallel through, or CH1+CH2 mix) |
| High-Pass Filter | Switchable, for use with a companion subwoofer |
Physical |
|
| Dimensions (H x W x D) | 19.4″ x 12.1″ x 11.4″ (493 x 308 x 289 mm) |
| Weight | 23.2 lb (10.5 kg) |
| Cabinet Material | Molded plastic, steel grille |
| Rigging | M8 rigging points (brackets/eye-bolts sold separately) |
| Cooling | 4-speed fan |
Package Contents
- 1x Yamaha DBR10 Powered Loudspeaker
- 1x Power cable
Documentation
