Power Amplifier, 2×500W@8Ω / 2×800W@4Ω | Yamaha PX5
රු203,900.00
A versatile Class-D power amplifier ideal for mid-sized sound reinforcement setups. It offers comprehensive DSP control including PEQ, crossover, limiter, and delay, along with Yamaha speaker presets and routing flexibility for varied system configurations.
Warranty: 1-year repair warranty for manufacturing defects.
Availability: Available on pre-order. Please contact us to check delivery time before ordering.
Please enter required quantity
Key Features
- Class-D design for lightweight and efficient performance
- Built-in DSP with presets, EQ, crossover, limiter, and delay
- Flexible routing: dual, parallel, bridged, and Y modes
- Intelligent fan control and protection circuitry
- LCD display with intuitive interface
Specifications
| Power Output (1kHz non-clip 20msec burst, both channels driven) | 8Ω Load: 2 × 500W / 1 x 800W 4Ω Load: 2 × 800W / 1 × 1400W |
| Sampling Frequency Rate | 48 kHz |
| Distortion | 0.1% (1kHz, 10W), 0.3% (1kHz, Half power) |
| Frequency Response | ±1.0dB (1W, 8Ω, 20Hz to 20kHz) |
| S/N Ratio | 100dB |
| Maximum Input Voltage | +24dBu |
| Input Impedance | Balanced: 20kΩ Unbalanced: 10kΩ |
| Input Connectors | 2 × XLR/TRS combo |

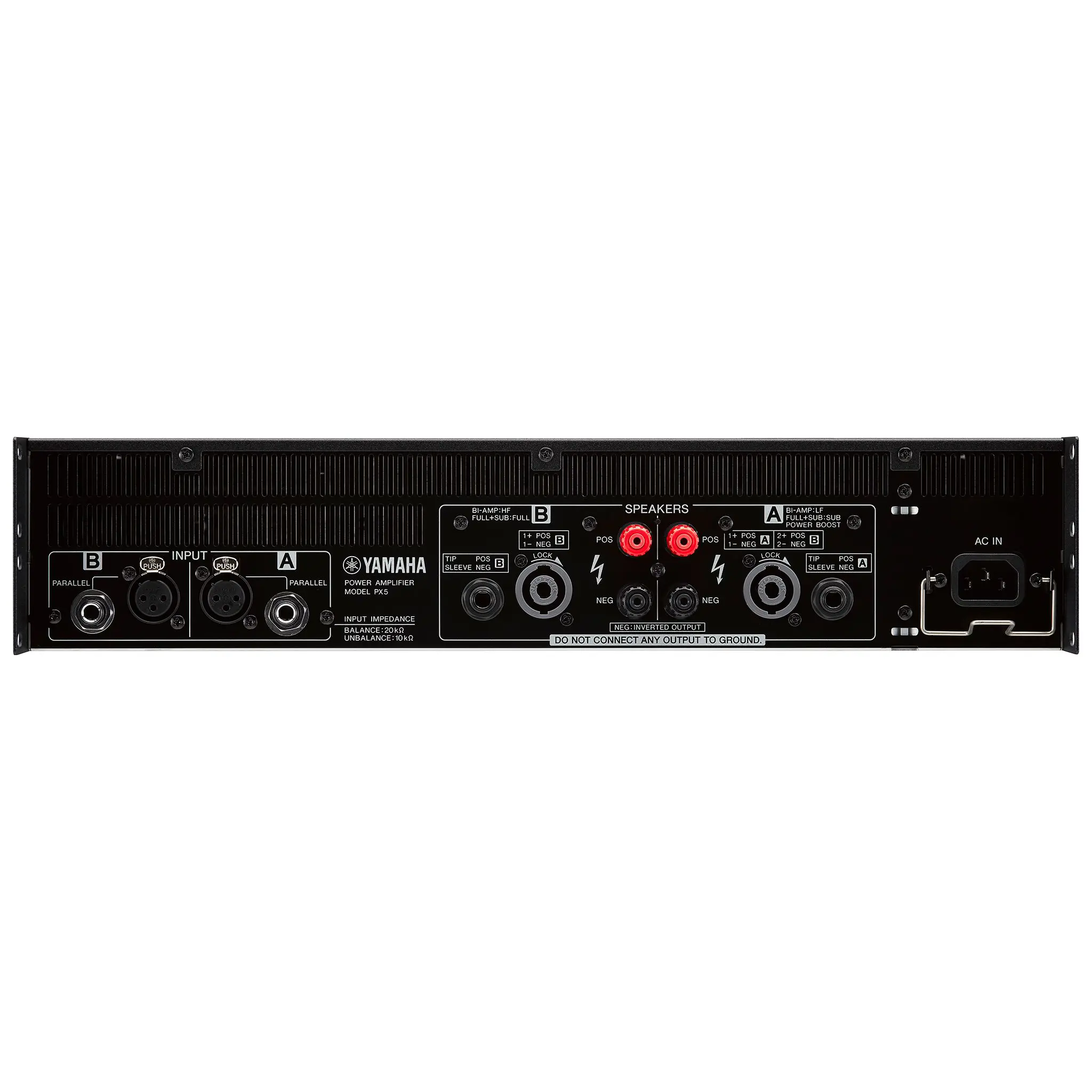

| Output Connectors | 2 × Speakon, 2 × binding post, 2 x 1/4-inch |
| Power Consumption | 230W |
| Operating Temperature | 0°C to +40°C |
| Storage temperature | -20°C to +60°C |
| Dimensions (W × D × H) | 480 × 388 × 88 mm |
| Net Weight | 6.9 kg |
