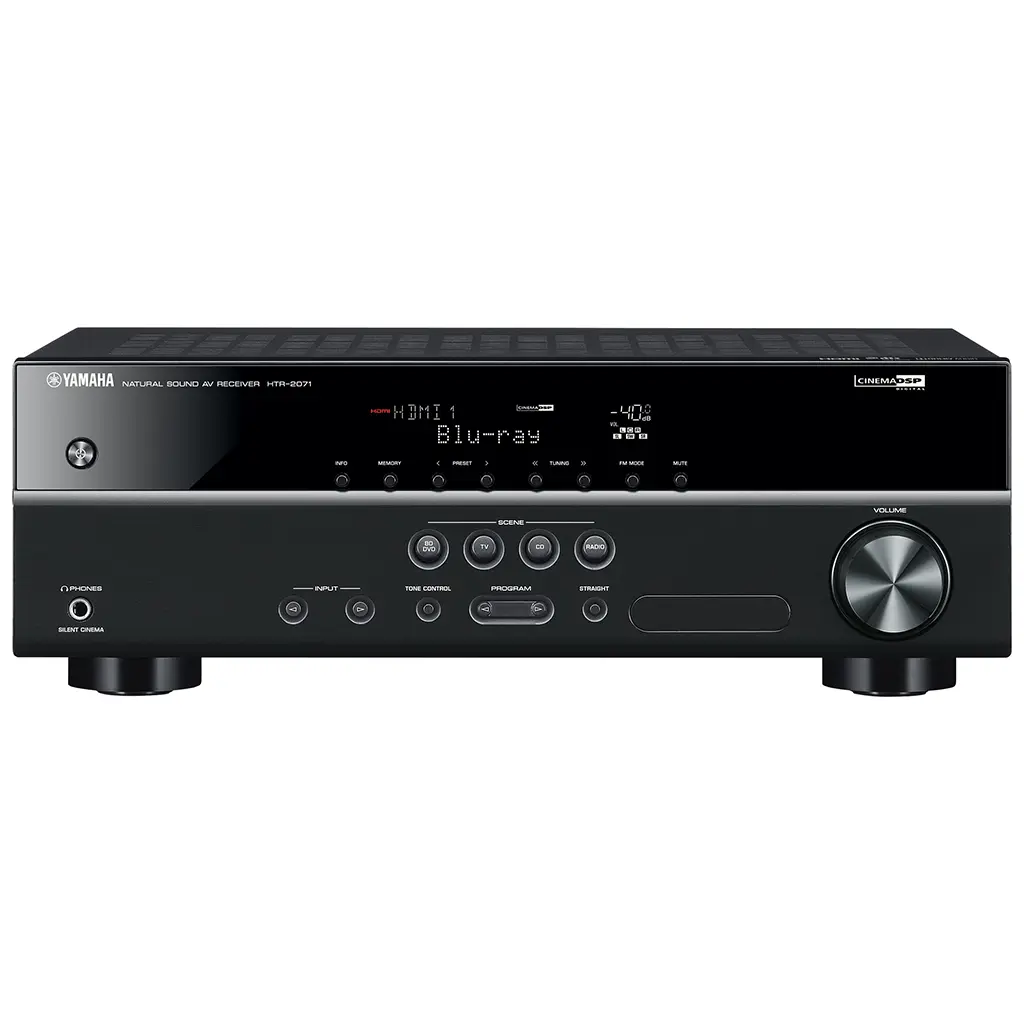

AV Receiver, 5-Channel | Yamaha HTR-2071
රු99,990.00
Yamaha’s most affordable 5.1-channel AV Receiver with Dolby TrueHD and DTS-HD Master Audio decoding.
Warranty: 1-year repair warranty for manufacturing defects.
Out of stock
Key Features
- 6 channels of amplification including a powered output for a passive subwoofer
- 1 x RCA line-level subwoofer output in addition to the powered output
- 4 x HDMI® inputs and 1 x output with Dolby Vision™ and Hybrid Log-Gamma support
- 3 x digital audio inputs – 1 x optical, 2 x coaxial
- 2 x RCA stereo analog inputs
- Supports lossless audio playback (Dolby TrueHD / DTS-HD Master Audio)
- Independently adjustable 5-band digital EQ for each speaker output
- FM Tuner with 40 Station Presets
- Color On-Screen Display (via HDMI out)
- 4 x programmable SCENE buttons
Specifications
Amplifier Section | |
Channels | 5.1 |
Rated Output Power (1kHz, 1ch driven) | 100 W (6 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 70 W (6 ohms, 0.09% THD) |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 135 W (6 ohms, 10% THD) |
Dynamic Power per Channel (8 / 6 / 4 / 2 ohms) | – / 110 / 130 / 150 W |
Surround Sound Processing | |
CINEMA DSP | Yes |
DSP Programs | 17 |
Dialog Level Adjustment | Yes |
SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) |
Dolby Digital Plus | Yes |
Dolby Digital | Yes |
Audio Features | |
Compressed Music Enhancer | Yes |
Adaptive DRC (Dynamic Range Control) | Yes |
Initial Volume & Maximum Volume Setting | Yes |
Audio Delay | Yes (0-500 ms) |
192kHz/24-bit DACs for all channels | Yes (Burr-Brown) |
Video Features | |
4K Ultra HD Pass-through and upscaling | Yes (4K / 60p, 4:4:4) |
HDMI 3D passthrough | Yes |
HDMI Audio Return Channel | Yes |
HDMI Up-scaling | Yes (HDMI® to HDMI) |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes |
Connectivity | |
HDMI Input / Output | 4 / 1 (HDCP2.2, HDR, CEC and BT.2020 compatible) |
HDMI CEC | Yes |
Digital Audio Inputs | Optical x 1, Coaxial x 2 |
Analog Audio Inputs | 2 |
Preout | Subwoofer |
Headphone Output | Yes (1) |
General | |
Auto Power Standby | Yes |
Standby Power Consumption | ≤ 0.3W |
ECO Mode | Yes |
Dimensions (W x H x D) | 435 x 151 x 315 mm; 17-1/8” x 6” x 12-3/8” |
Weight | 7.4 kg; 16.3 lbs. |
Documentation
- Quick Start Guide (PDF)
- Owner’s Manual (PDF)
