Wireless Clip-On Microphone | Electro-Voice R300-L
රු109,900.00
Wireless microphone system with ULM18 directional lapel mic, BP-300 belt-pack transmitter and R300 receiver.
Warranty: 6-month carry-in repair warranty for manufacturing defects.
Availability: 1 in stock.
Free delivery within 8 working hours to Colombo District using PickMe Flash or within 3 working days to the rest of Sri Lanka via Prompt Xpress. In-store pickup possible after placing order online. Learn more.
Key Features
- ClearScan automatically finds the clearest channel at the touch of a button
- EZsync one-step channel setup
- ULM18 directional lavalier microphone
- 14-hour battery life from two AA alkaline
- Rugged metal encased transmitter
- Metal receiver chassis with optional rack mount
- Soft carrying case included
Specifications

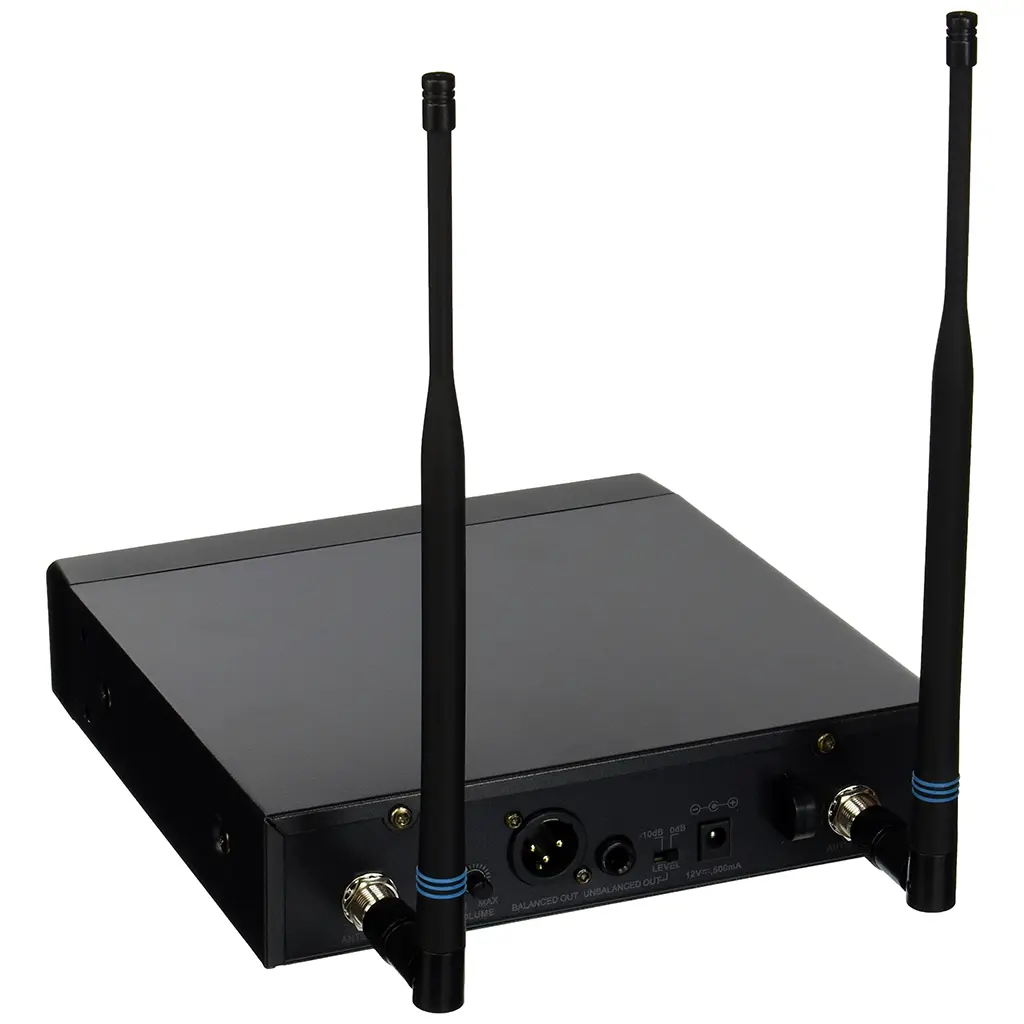

| R300-RX-A Receiver | |
| Type | Synthesized PLL |
| Frequency Range (RF) | 618 – 634 MHz (A Band) |
| Number of Channels | 32 |
| Modulation | ± 40 kHz |
| Antennas | Flexible TNC 1/2 Wave |
| RF Sensitivity | <1.0μV for 12dB SINAD |
| Image Rejection | >55dB |
| Squelch | Tone Code plus Amplitude |
| Power Requirements | 12-16 Vdc, 500mA max |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) |
| Dimensions | 43 mm H x 206 mm W x 210 mm D (1.72 in H x 7.8 in W x 8.0 in D) |
| Frequency Response | 80 Hz – 18 kHz ± 2 dB |
| Balanced Output | 20 dBV (max @ 40 kHz deviation) |
| Unbalanced Output | Adjustable from 8mV to 0.755V |
| Distortion | <1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation) |
| Signal-to-Noise Ratio | >100dB A-Weighted |
| Dynamic Range | >95dB |
| BP-300-A Bodypack Transmitter | |
| Frequency Range (RF) | 618 – 634 MHz (A Band) |
| Radiated Output | 8mW typical |
| Back Lit LCD Display | Channel, Frequency, Mute, and Battery Level |
| Power Requirement | Two AA batteries |
| Battery Life (Typical) | >14 hours with AA alkaline typical |
| Antenna | Flexible external 1/4 wave |
| Dimensions | 84 mm H x 66 mm W x 23 mm D (3.3 in H x 2.6 in W x 0.89 in D) |
| ULM18 Clip-On Microphone | |
| Polar Pattern | Cardioid |
| Connector | TA4F (Pin-1: Ground, Pin-2: Mic Input, Pin-3: +5V bias, Pin 4: +5V through 2.2kΩ) |
Documentation
- Data Sheet (PDF)
- Quick Start Guide (PDF)
- User Guide (PDF)
