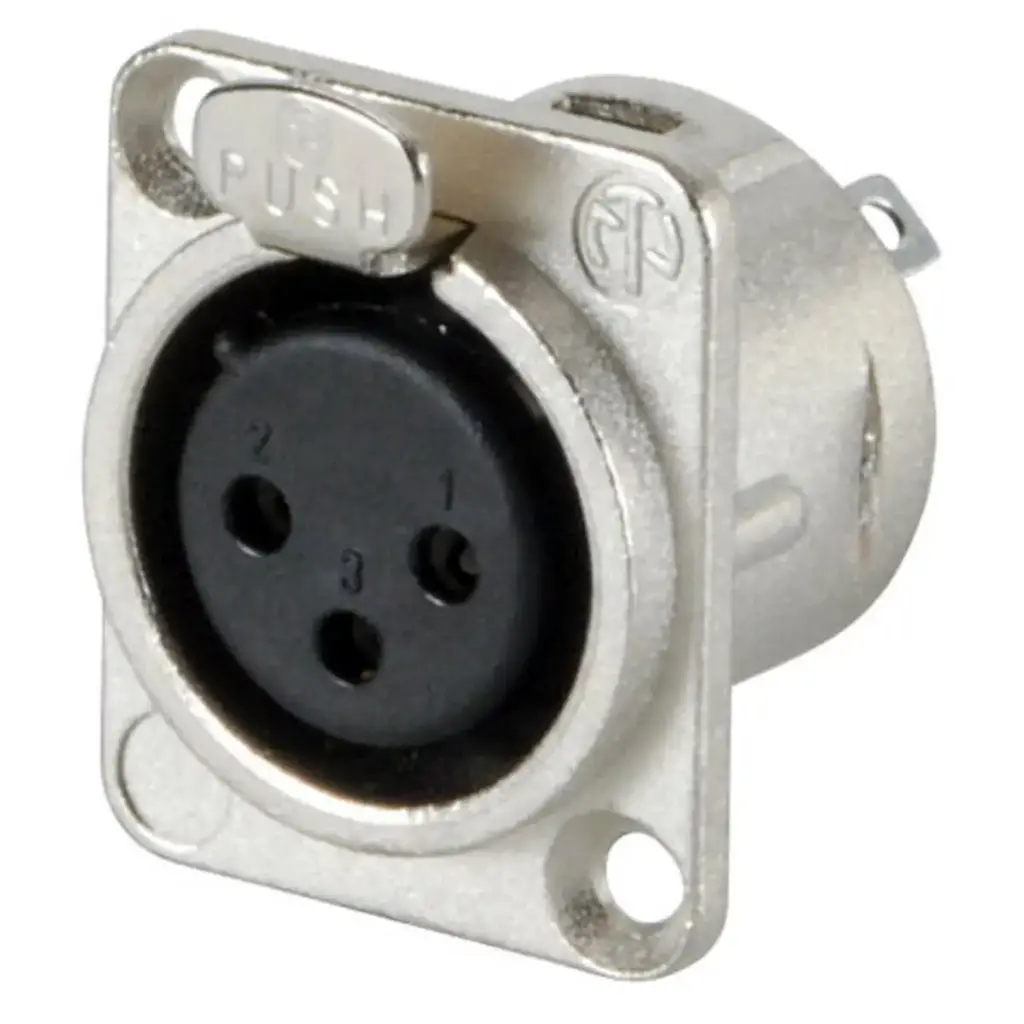

3-Pin XLR Female Socket, D-Type Chassis Mount | Neutrik NC3FD-L-1

රු2,469.00

3-pole female XLR panel-mount connector with solder cups, nickel-plated D-size metal housing, silver-plated contacts, and latch locking.

Availability: In stock.

Delivery within 8 working hours to Colombo District using PickMe Flash or within 3 working days to the rest of Sri Lanka via Prompt Xpress. In-store pickup possible after placing order online. Learn more.

SKU: NC3FD-L-1 Category: Brand: Made In: China

Product Overview

The Neutrik NC3FD-L-1 is a professional 3-pole female XLR chassis connector for panel mounting in audio equipment, wall plates, patch panels and custom enclosures. It uses Neutrik’s universal D-size metal housing and a standardized 24mm panel cut-out for broad installation compatibility.

The connector features solder-cup terminations, a robust nickel-plated zinc die-cast shell and silver-plated bronze contacts. A latch-lock mechanism secures the mating XLR plug in place, making the NC3FD-L-1 suitable for professional AV, broadcast, stage and installed-audio applications.

Key Features

  • 3-pole female XLR chassis connector
  • Universal Neutrik D-size metal housing
  • Standardized 24mm panel cut-out
  • Solder-cup connections
  • Latch-lock mechanism
  • Nickel-plated zinc die-cast shell
  • Silver-plated bronze contacts
  • 16A rated current per contact
  • Maximum wire size 2.5mm² / 14 AWG
  • Rated for more than 1,000 mating cycles
  • IP40 protection rating
  • UL recognized component

Specifications

Electrical
Connection Type XLR
Gender Female
Poles 3
Capacitance Between Contacts ≤ 4 pF
Contact Resistance ≤ 5 mΩ
Dielectric Strength 1.5 kV DC
Insulation Resistance > 2 GΩ initial
Rated Current per Contact 16A
Rated Voltage < 50V

Mechanical
Wiring Solder contacts
Locking Device Latch lock
Chassis Shape D-size
Panel Cut-out 24mm
Wire Size Up to 2.5mm² / 14 AWG
Insertion Force ≤ 20N
Withdrawal Force ≤ 20N
Lifetime > 1,000 mating cycles

Materials & Environmental
Shell Zinc die-cast (ZnAl4Cu1)
Shell Plating Nickel
Contacts Bronze (CuSn8)
Contact Plating 2 µm silver over 2 µm nickel
Insert Polyamide PA 6.6, 30% glass-reinforced
Protection Class IP40
Temperature Range -30°C to +80°C
Standard Compliance IEC 61076-2-103
