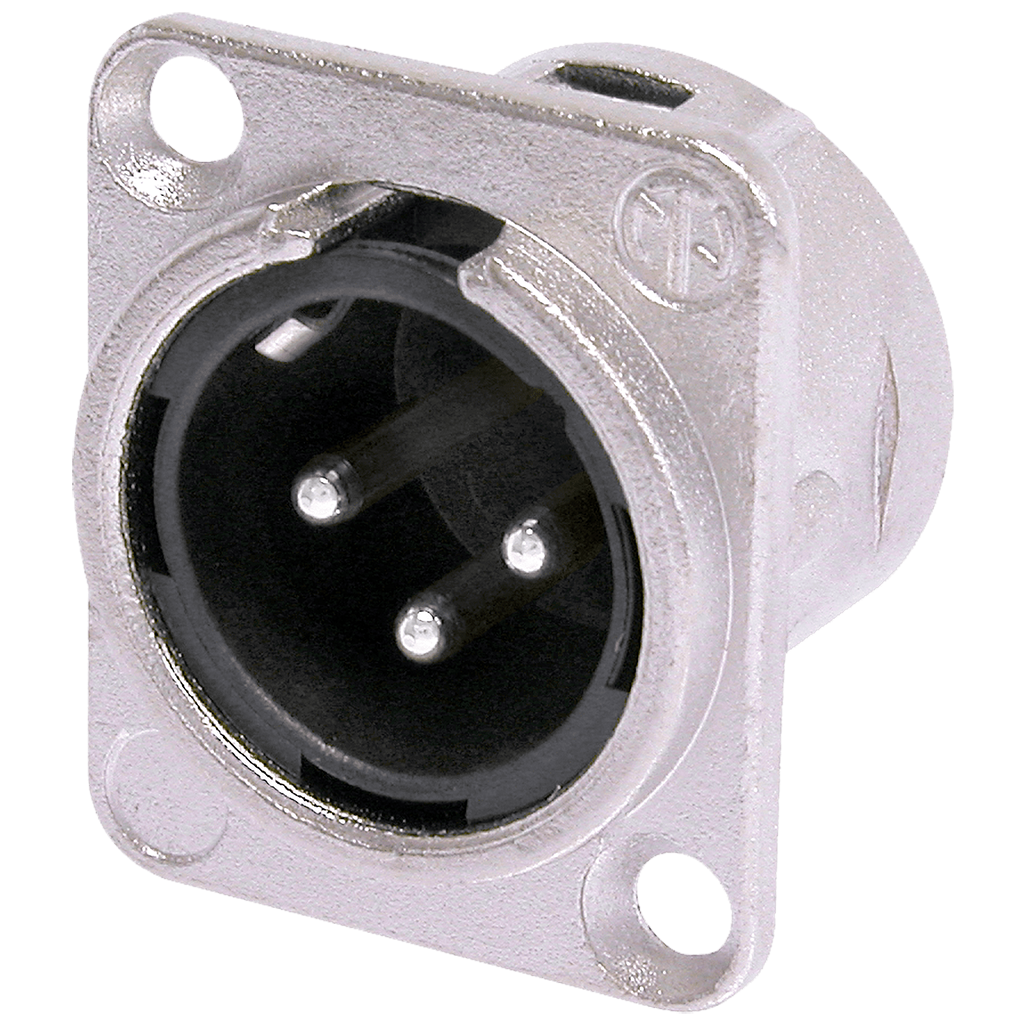

3-Pin XLR Male Socket, D-Type Chassis Mount | Neutrik NC3MD-L-1

රු2,439.00

3-pole male XLR panel-mount connector with solder contacts, nickel-plated D-size metal housing, silver-plated contacts, and standardized 24mm panel cut-out.

Availability: In stock.

Delivery within 8 working hours to Colombo District using PickMe Flash or within 3 working days to the rest of Sri Lanka via Prompt Xpress. In-store pickup possible after placing order online. Learn more.

SKU: NC3MD-L-1 Category: Brand: Made In: China

Product Overview

The Neutrik NC3MD-L-1 is a professional 3-pole male XLR chassis connector designed for panel mounting in audio equipment, wall plates, patch panels and custom enclosures. It uses Neutrik’s standardized D-size metal housing, making it suitable for a wide range of professional AV and audio installation applications.

The connector features solder contacts, a robust nickel-plated zinc die-cast shell and silver-plated brass contacts. Its standardized 24mm D-series panel cut-out simplifies integration into equipment panels and connector plates.

With a rated current of 16A per contact, low contact resistance and a service life exceeding 1,000 mating cycles, the NC3MD-L-1 is designed for reliable professional use.

Key Features

  • 3-pole male XLR chassis connector
  • Standard Neutrik D-size metal housing
  • Standardized 24mm panel cut-out
  • Front-mounting design
  • Solder contacts
  • Nickel-plated zinc die-cast shell
  • Silver-plated brass contacts
  • 16A rated current per contact
  • Rated for more than 1,000 mating cycles
  • UL-recognized component

Specifications

Electrical
Connection Type XLR
Gender Male
Poles 3
Capacitance Between Contacts ≤ 4 pF
Contact Resistance ≤ 5 mΩ
Dielectric Strength 1.5 kV DC
Insulation Resistance > 10 GΩ initial
Rated Current per Contact 16A
Rated Voltage < 50V

Mechanical
Wiring Solder contacts
Mounting Direction Front mounting
Chassis Shape D-size
Panel Cut-out 24mm
Insertion Force ≤ 20N
Withdrawal Force ≤ 20N
Lifetime > 1,000 mating cycles

Materials
Shell Zinc die-cast (ZnAl4Cu1)
Shell Plating Nickel
Contacts Brass (CuZn35Pb2)
Contact Plating 2 µm silver over 2 µm nickel
Insert Polyamide PA 6.6, 30% glass-reinforced
