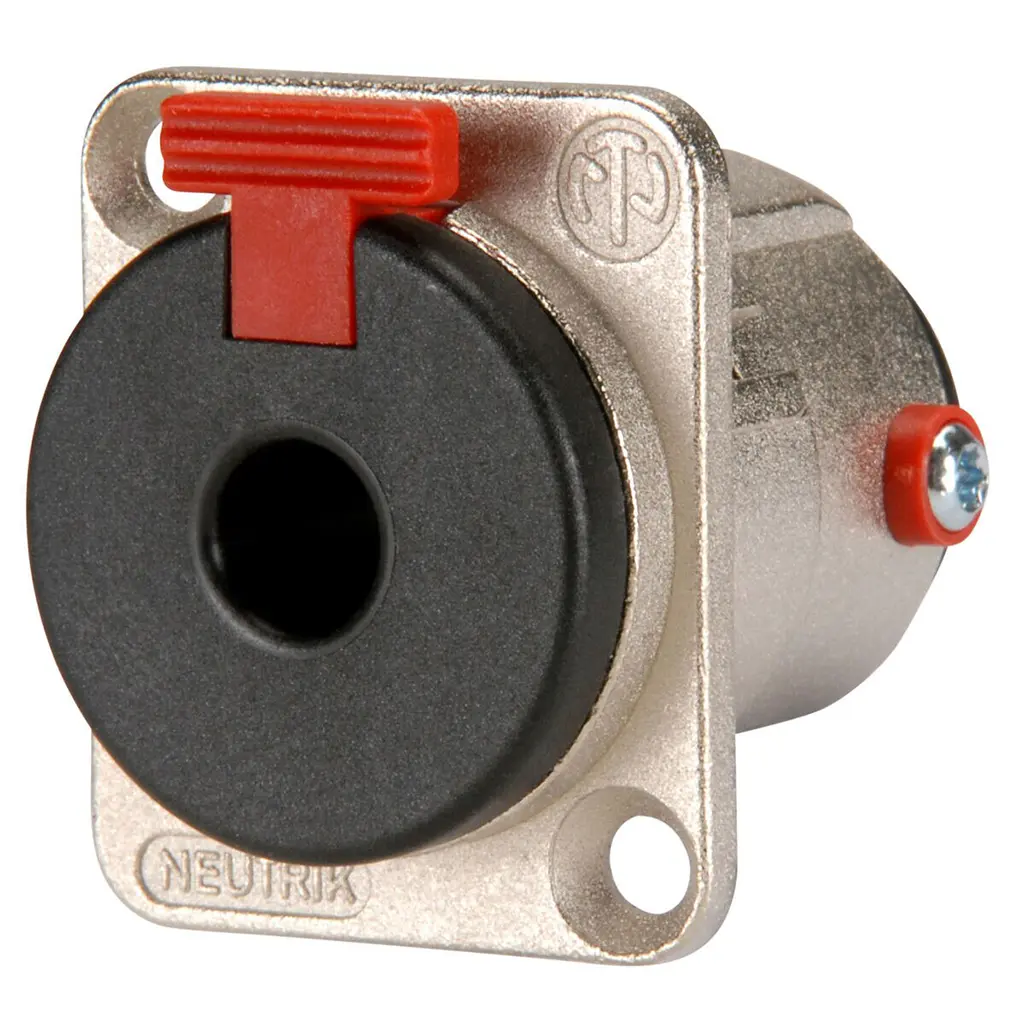

1/4″ TRS Female Socket, D-Type Chassis Mount | Neutrik NJ3FP6C

රු3,459.00

3-pole locking 1/4″ panel-mount jack in a nickel-plated D-size metal housing with silver contacts, solder terminals, and automatic latch locking.

Availability: In stock.

Delivery within 8 working hours to Colombo District using PickMe Flash or within 3 working days to the rest of Sri Lanka via Prompt Xpress. In-store pickup possible after placing order online. Learn more.

SKU: NJ3FP6C Category: Brand: Made In: China

Product Overview

The Neutrik NJ3FP6C is a professional 3-pole locking 1/4″ chassis jack designed for secure panel-mount audio connections. Its automatic latch mechanism locks a standard A-gauge mono or stereo plug when inserted and releases it only when the red release tab is pressed, helping prevent accidental disconnection in installed, stage and equipment-panel applications.

The connector uses Neutrik’s standard D-size chassis format, making it dimensionally compatible with D-Series panel cut-outs. A nickel-plated zinc die-cast metal shell provides a robust mounting interface, while silver-plated contacts and solder terminals support reliable electrical connection.

The NJ3FP6C is suitable for professional audio equipment, patch panels, wall plates, custom enclosures and other applications requiring a secure 6.35mm jack connection.

Key Features

  • 3-pole locking 1/4″ chassis jack
  • Accepts standard A-gauge mono and stereo 1/4″ plugs
  • Automatic latch lock with red release tab
  • Standard Neutrik D-size panel format
  • Nickel-plated metal housing
  • Silver-plated contacts
  • Solder terminals
  • Rated for more than 10,000 mating cycles
  • 10A rated current per contact
  • Front-mounting chassis design

Specifications

Electrical
Connection Type 1/4″ jack
Poles 3
Gender Female
Contact Resistance < 6 mΩ initial
Dielectric Strength 1 kV DC
Insulation Resistance ≥ 1 GΩ @ 500V DC
Rated Current per Contact 10A

Mechanical
Locking Device Latch lock
Insertion Force < 30N
Withdrawal Force < 20N
Locking Force > 80N
Lifetime > 10,000 mating cycles
Wire Size Up to 1mm² / 18 AWG
Wiring Solder contacts
Mounting Front mounting
Chassis Shape D-size
D-Series Flange Size 31 x 26 mm

Materials & Environmental
Shell Zinc die-cast (ZnAl4Cu1)
Shell Plating Nickel
Contact Plating 2 µm silver
Contact Material Copper alloy
Insert Polyamide PA 6.6, 30% glass-reinforced, UL94 V-0
Temperature Range -25°C to +70°C
Standards EIA RS-453, IEC 60603-11
