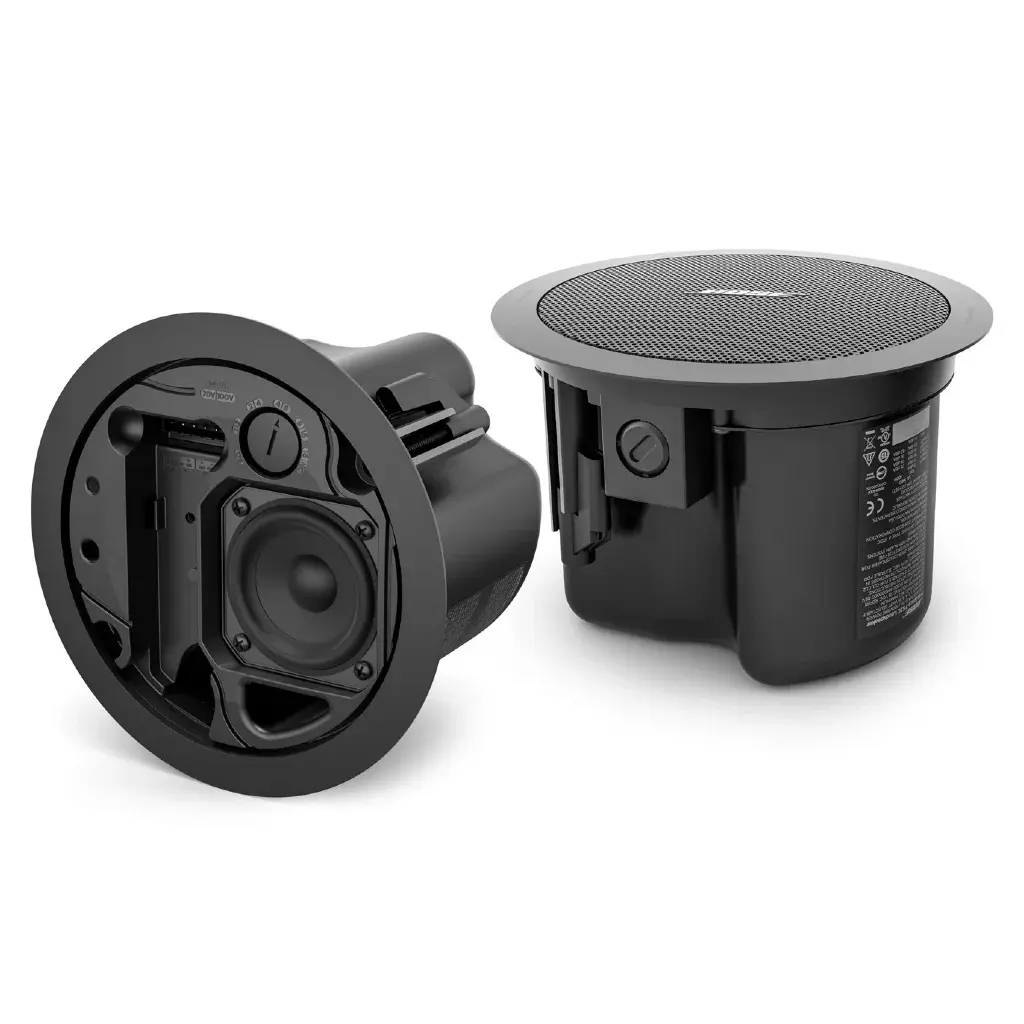

Ceiling Speakers, 16W@100V/16Ω | Bose FreeSpace FS2C
රු109,900.00 (pair)
A compact in-ceiling loudspeaker designed for high-quality voice and background music reproduction in indoor commercial spaces. With a 2.25″ full-range driver and wide 150° conical coverage, it offers consistent audio performance with a discreet, flush-mount design.
Warranty: 2-year carry-in repair/replacement warranty for manufacturing defects.
Key Features
- 2.25″ full-range driver delivers clear and intelligible sound.
- Supports both 70/100V distributed systems and 16Ω low-impedance operation.
- 150° conical coverage for wide, even dispersion.
- Integrated multi-tap transformer with selectable power settings.
- Low-profile, flush-mount design with paintable grille.
- Plenum-rated backcan with tile bridge included for safe ceiling installation.
- Designed for indoor use in commercial environments.
Specifications
| Transducer | 2.25″ full-range driver |
| Rated Power | 16W continuous |
| Frequency Response | 95Hz to 16kHz (-3dB) |
| Nominal Impedance | 16Ω (transformer bypass) |
| Sensitivity | 86dB (1W, 1m) |
| Transformer Taps | 70V: 16, 8, 4, 2, 1 W / 100V: 16, 8, 4, 2 W |
| Coverage Pattern | 1kHz to 4kHz: 150° 1kHz to 10kHz: 145° |
| Enclosure | Plenum-rated metal backcan |
| Ceiling Cutout | 160 mm |
| Dimensions | 182mm (diameter) x 132 mm (height) |
| Net Weight | 1.63kg (3.6lbs) |
Documentation
- Data Sheet (PDF)
- Installation Guide (PDF)
- Design Guide (PDF)
