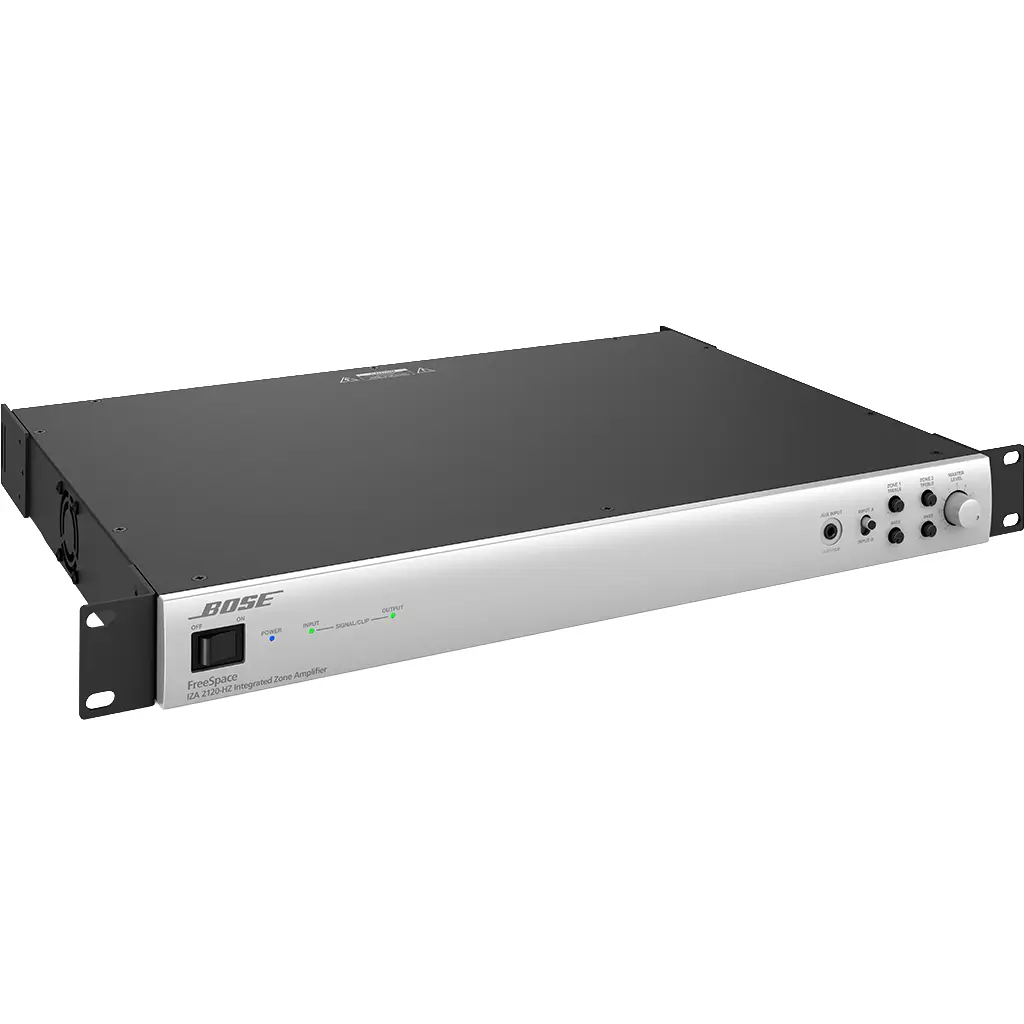

PA Mixer Amplifier, 2×120 W @ 70V/100V | Bose FreeSpace IZA 2120‑HZ
රු463,900.00
Dual-zone Class‑D mixer/amplifier delivering 2×120 W for commercial background music and paging, with independent EQ, tone controls, and seamless DSP integration.
Warranty: 1-year repair/replacement warranty for manufacturing defects.
Availability: Available on pre-order. Please contact us to check delivery time before ordering.
Please enter required quantity
Key Features
- Dual 120 W outputs for two independent zones
- True two‑zone operation: independent volume, source, EQ, paging/aux routing
- Opti‑Voice® paging for clear speech and smooth transitions
- Dynamic EQ maintains balanced music at low volumes
- Selectable loudspeaker EQ presets for Bose systems (FreeSpace/DesignMax)
- Front 3.5 mm aux input for mobile devices
- Front-panel tone (bass/treble), source select, master volume control
- Dual remote support for zoned source/volume control
- Auto-Standby to reduce power when idle
- Remote muting via control systems
- Intuitive DIP-switch setup—no PC required
Specifications
| Power Output | 2 x 120W @ 70V/100V |
| Frequency Response | 55Hz to 20kHz (+0dB/-3dB) at 1W, 1kHz reference |
| S/N Ratio | ≥ 75 dB (A-weighted) |
| Inputs | 2 x Dual RCA stereo, 2 x 5-pin Euroblock, 1 x 1/8-in (3.5 mm) TRS |
| Outputs | 2 x 2-pin inverted Euroblock, 1 x Dual RCA Stereo |
| Input Voltage Range | Line: 8 dBu to +22 dBu Page: -58 dBu to +12 dBu Auxiliary: -60 dBu to -1 dBu |
| Input Impedance | Balanced (Page Input): 2 kΩ Unbalanced (Line Input): 20 kΩ Unbalanced (Auxiliary Input): 20 kΩ |
| Power Consumption | 26W (Standby), 300W (Max) |
| Rack Space Units | 1 RU |
| Dimensions (W × D × H) | 483 × 324 × 44 mm |
| Weight | 4.1kg (9.0 lb |
Documentation
- Data Sheet (PDF)
- User Manual (PDF)
