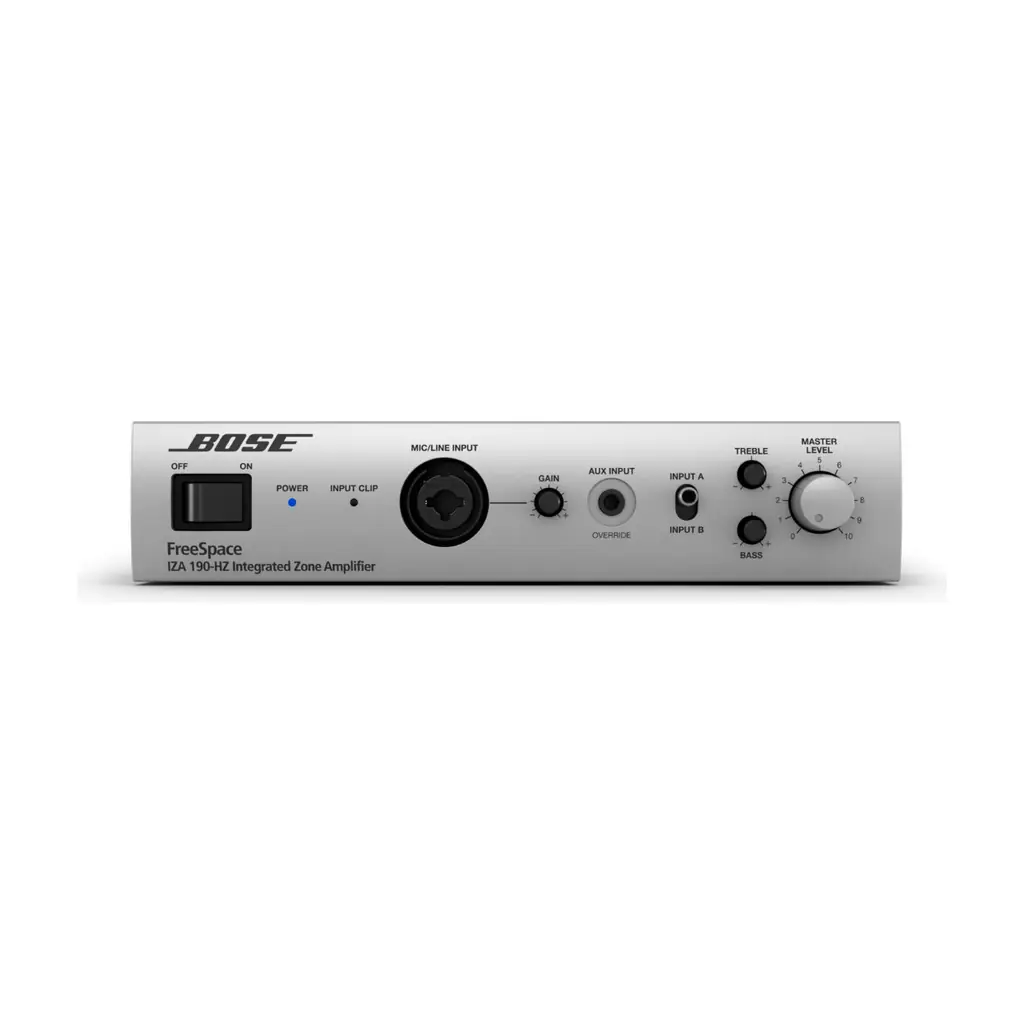

090W PA Mixer Amplifier | Bose FreeSpace IZA 190-HZ
Compact 90W Class-D zone amplifier with integrated DSP, Bose speaker EQ presets and remote control. Suitable for background music, foreground music and paging in commercial spaces.
රු263,900.00
Warranty: 2-year carry-in repair/replacement warranty for manufacturing defects.
Availability: This product is sourced on order and is not normally held in stock. Please contact us to request a quote or to check delivery time before ordering.
Product Overview
The Bose Professional FreeSpace IZA 190-HZ is a compact 90W zone amplifier designed for background music, foreground music and paging in commercial spaces. Its integrated DSP provides straightforward system control, while dedicated microphone/line, stereo and auxiliary inputs make it suitable for a range of audio sources.
Designed for use with Bose Professional speaker systems, the IZA 190-HZ combines selectable EQ presets, Opti-Voice paging with automatic ducking, tone controls and remote-control compatibility in a compact half-rack chassis. Its 70V/100V output makes it well suited to distributed audio installations where reliable amplification and simple system operation are important.
Key Features
- 90W continuous power output @70V/100V
- Built-in microphone/line input with priority paging
- Opti-Voice® paging with automatic ducking for smooth transitions
- Treble and bass tone controls for sound customization
- Preprogrammed selectable EQ settings for Bose FS2 and FS4 Series speakers
- Multiple input types: mic/line, stereo RCA, Euroblock connectors
- Balanced and unbalanced output connections
- Compact 1U, half-rack chassis for easy installation
- LED indicators for power and clip
Specifications
| Power Output | 90W @ 70V/100V line |
| Frequency Response | 60Hz to 20kHz (+0dB/-3dB) at 1W, 1kHz reference |
| S/N Ratio | ≥ 75 dB (A-weighted) |
| Inputs | 1 x Dual RCA stereo, 1 x XLR-1/4-in combo, 1 x 4-pin Euroblock, 1 x 1/8-in (3.5 mm) TRS |
| Outputs | 1 x 3-pin Euroblock, 1 x Dual RCA Stereo |
| Input Voltage Range | 0dBV to +10dBV |
| Input Impedance | Balanced: 2kΩ Unbalanced: 20kΩ |
| Power Consumption | 15W (Idle), 200W (Max) |
| Rack Space Units | 1 RU high, half rack wide |
| Dimensions | 310 × 214 × 45 mm (W × D × H) |
| Weight | 3.2 kg |
Package Contents
- Power cord
- Feet with pins (x4)
- 4-pin Euroblock connector for PAGE input
- 4-pin Euroblock connector for REMOTE connections
- 2-pin Euroblock connector for MUTE connection
- 3-pin Euroblock connector for OUTPUT connection
Documentation
- Data Sheet (PDF)
- Installation and Operating Guide (PDF)
