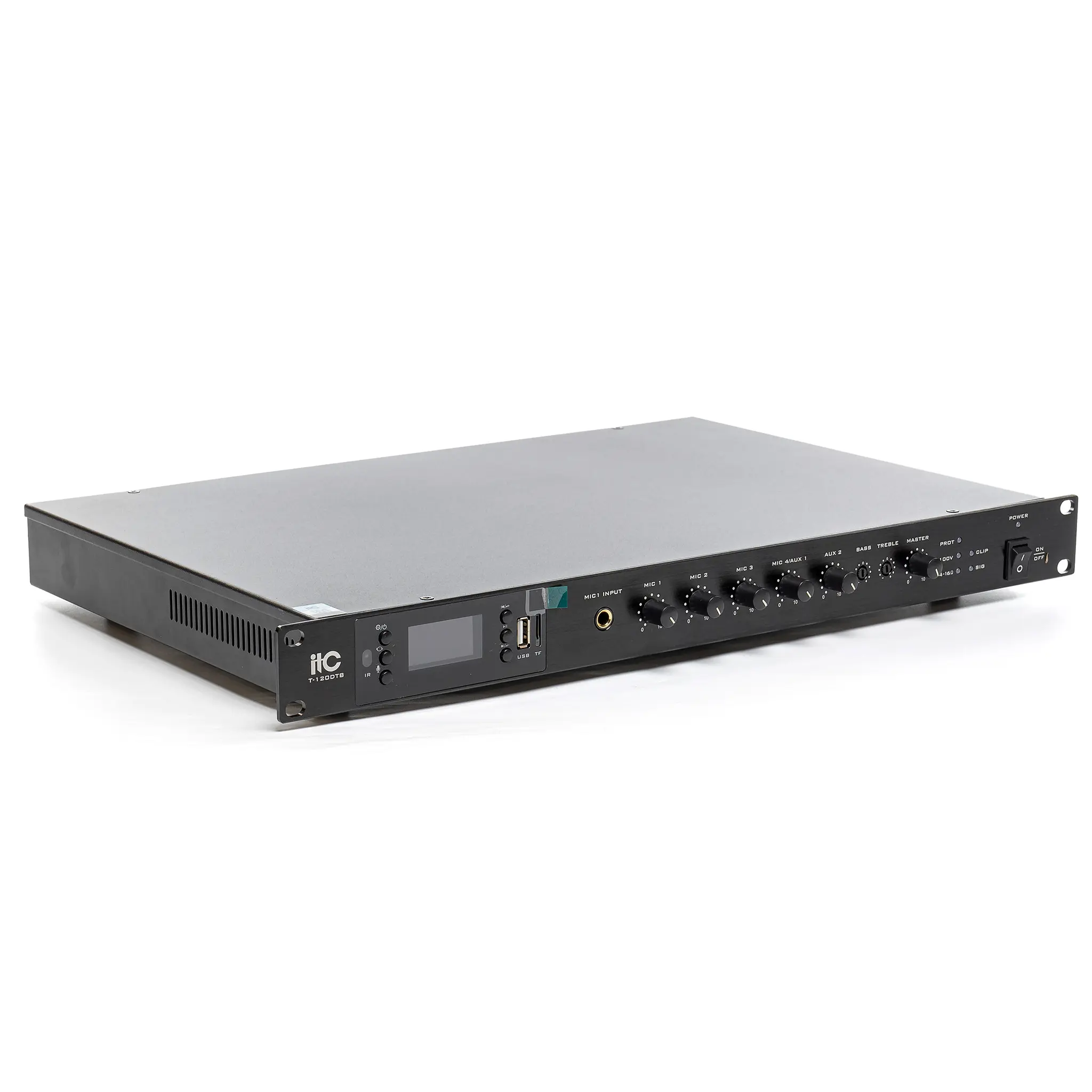

120W PA Mixer Amplifier with BT, FM, SD and USB | ITC T-120DTB

Product Overview

The ITC T-120DTB is a 120W digital PA mixer-amplifier designed for background music and public address systems in small and medium-sized commercial spaces. It combines a 100V constant-voltage output with 4–16Ω low-impedance operation, making it suitable for both distributed audio systems and conventional speaker installations.

Built-in USB and microSD playback, FM radio and Bluetooth provide convenient music sources, while four microphone inputs, an EMC input and two AUX inputs allow multiple audio sources to be connected. Individual input controls, bass and treble adjustment, an IR remote control and a compact 1U rack-mountable design make the T-120DTB a practical solution for straightforward commercial audio systems.

Key Features

• Power output of 120 watts
• Compatible with 100V and 4-16Ω speakers
• Supports MP3 playback from a USB drive or microSD card
• FM radio and Bluetooth connectivity
• Master volume, bass, and treble controls
• 4 x MIC Inputs and 1 x EMC Input (1/4″ sockets, no phantom power)
• 2 x Line-Level AUX Inputs (dual RCA sockets)
• 1 x Line-Level MIX Out (post tone control, pre master volume, dual RCA sockets)
• Offers individual level controls for MIC 1~3, MIC-4/AUX-1 and AUX-2
• 19” 1U rack-mountable
• Comes with an IR remote control for easy operation

Specifications

Package Contents

• T-120DTB Mixer Amplifier
• Remote Control (battery not included)
• Power Cord (13A UK-type to IEC)
• FM Antenna
• Operating Manual

Documentation

• Data Sheet (PDF)
• User Manual (PDF)
