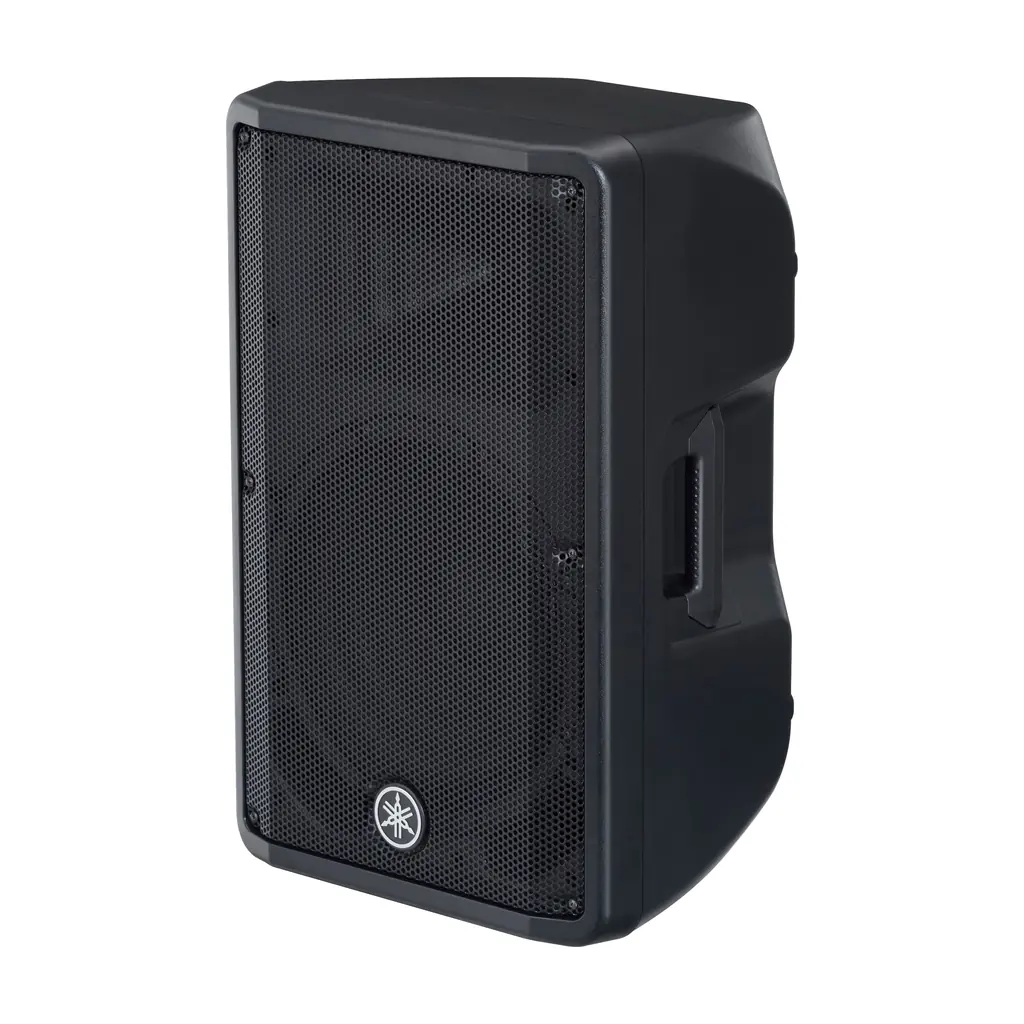

Passive PA Speaker, 350W@8Ω | Yamaha CBR12
12-inch passive 2-way PA speaker with 700W peak power handling, 8Ω impedance, 90° × 60° coverage and M8 rigging points.
රු138,400.00 (each)
Warranty: 1-year carry-in repair warranty for manufacturing defects.
Availability: In stock.
Free delivery within 8 working hours to Colombo District using PickMe Flash or within 3 working days to the rest of Sri Lanka via Prompt Xpress. In-store pickup possible after placing order online. Learn more.
Product Overview
The Yamaha CBR12 is a 12-inch passive 2-way speaker that combines high output, wide coverage and practical versatility in a compact, portable enclosure. Designed for front-of-house sound, floor monitoring and installed or rigged applications, it offers a useful balance of performance and size for a wide range of live sound and PA systems.
Its 12-inch low-frequency driver and 1.4-inch compression driver work with Yamaha’s wide-dispersion constant-directivity horn to provide clear, high-definition sound across a 90° × 60° coverage pattern. The rugged plastic enclosure is designed for reliable operation at high output levels while remaining relatively lightweight and easy to transport.
The CBR12 can be used as a conventional pole-mounted or floor-monitor speaker, or installed using its integrated M8 rigging points and compatible mounting hardware. Its 50° wedge angle, symmetrical enclosure design and flexible mounting options make it equally suitable for portable PA systems and more permanent installations.
Specifications
| Speaker type | 2-way, bass-reflex |
| LF driver | 12-inch cone, 2-inch voice coil, ferrite magnet |
| HF driver | 1.4-inch voice coil compression driver, ferrite magnet |
| Frequency range (-10dB) | 48Hz–20kHz |
| Nominal coverage | 90° horizontal × 60° vertical |
| Crossover frequency | 2.1kHz |
| Power rating | 175W noise / 350W program / 700W peak |
| Nominal impedance | 8Ω |
| Sensitivity | 96dB SPL (1W, 1m) |
| Maximum SPL | 125dB SPL peak |
| Connectors | 1/4-inch phone ×1; speakON NL4MP ×1 |
| Cabinet | Plastic, black |
| Pole socket | 35mm |
| Rigging points | 2 × M8 bottom; 1 × M8 rear pullback point |
| Dimensions (W × H × D) | 376 × 601 × 348mm |
| Net weight | 13.9kg |
Package Contents
- Yamaha CBR12 speaker
Documentation
- Technical Specifications (PDF)
- Owner’s Manual (PDF)
