Passive PA Speaker, 500W@8Ω | Yamaha CBR15
15-inch passive 2-way PA speaker with 1000W peak power handling, 8Ω impedance, 90° × 60° coverage and M8 rigging points.
රු159,900.00 (each)
Warranty: 1-year carry-in repair warranty for manufacturing defects.
Availability: In stock.
Free delivery within 8 working hours to Colombo District using PickMe Flash or within 3 working days to the rest of Sri Lanka via Prompt Xpress. In-store pickup possible after placing order online. Learn more.
Product Overview

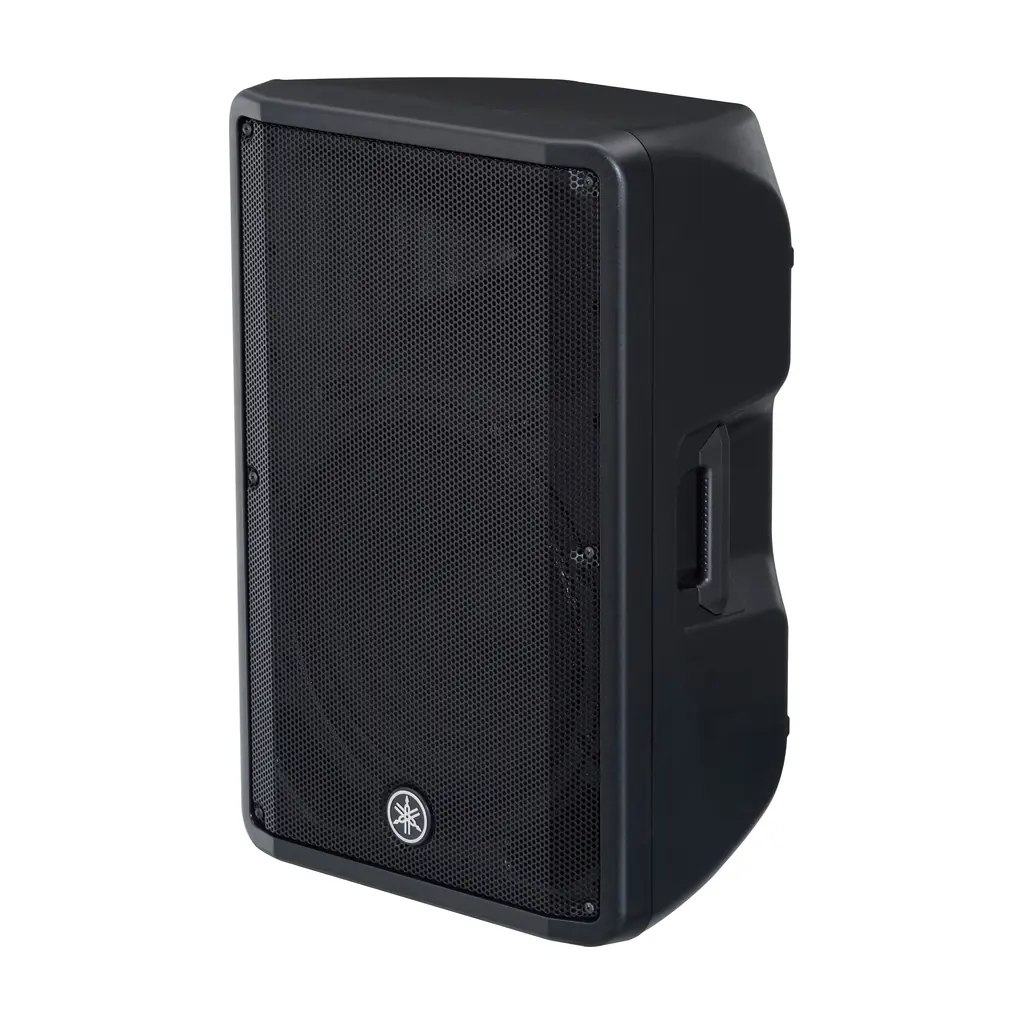

The Yamaha CBR15 is a 15-inch passive 2-way speaker designed for applications where high output and extended low-frequency performance are important. It is well suited to front-of-house sound for live performances and DJ events, as well as floor monitoring and installed or rigged PA systems. Its combination of high sensitivity, wide coverage and robust construction makes it a versatile choice for portable and permanent sound reinforcement.
Its 15-inch low-frequency driver and 1.4-inch compression driver work with Yamaha’s wide-dispersion constant-directivity horn to deliver clear, high-definition sound across a 90° × 60° coverage pattern. The rugged yet relatively lightweight plastic enclosure incorporates two side handles for easier transport and setup, while the straightforward 1/4-inch phone and speakON connections simplify integration with a wide range of professional PA equipment.
The CBR15 can be used as a conventional pole-mounted speaker or positioned as a floor monitor using its 50° symmetrical wedge design. Integrated M8 rigging points allow the speaker to be installed using compatible brackets or eye bolts, providing additional flexibility for permanent installations. This combination of high output, practical portability and flexible deployment makes the CBR15 particularly well suited to larger live sound and PA applications.
Specifications
| Speaker type | 2-way, bass-reflex |
| LF driver | 15-inch cone, 2.5-inch voice coil, ferrite magnet |
| HF driver | 1.4-inch voice coil compression driver, ferrite magnet |
| Frequency range (-10dB) | 46Hz–20kHz |
| Nominal coverage | 90° horizontal × 60° vertical |
| Crossover frequency | 2.0kHz |
| Power rating | 250W noise / 500W program / 1000W peak |
| Nominal impedance | 8Ω |
| Sensitivity | 96dB SPL (1W, 1m) |
| Maximum SPL | 126dB SPL peak |
| Connectors | 1/4-inch phone ×1; speakON NL4MP ×1 |
| Cabinet | Plastic, black |
| Pole socket | 35mm |
| Rigging points | 2 × M8 bottom; 1 × M8 rear pullback point |
| Dimensions (W × H × D) | 455 × 700 × 378mm |
| Net weight | 17.7kg |
Package Contents
- Yamaha CBR15 speaker
- Technical Specifications
- Owner’s Manual
Documentation
- Data Sheet (PDF)
- Owner’s Manual (PDF)
